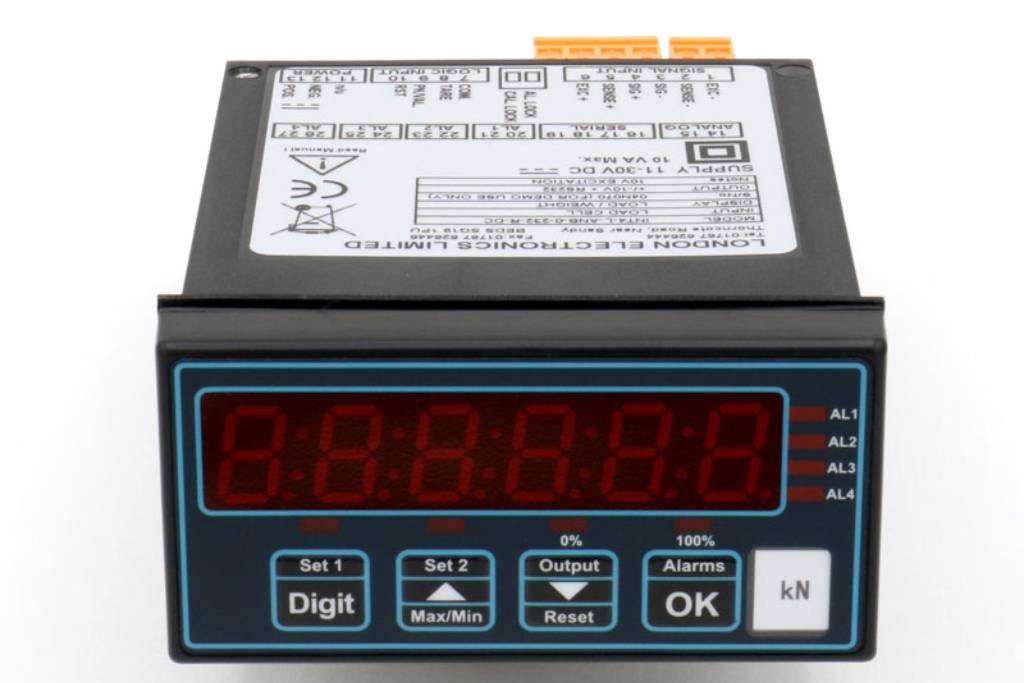

INT4-L

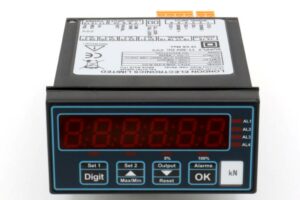

The versatile INT4-L panel mount loadmeter for strain gauge loadcells

F202

Standard Ranges 10, 25, 50, 100 and 200kN (1 to 20tonnef)

F202 - Geometry: Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications.

F203

Standard Ranges 400 and 800kN (40 and 80tonnef)

F203 - Geometry: Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications.

F204

Standard Ranges 10, 25, 50, 100, 250 and 500kN (1 to 50tonnef)

Geometry: Axial strain cylinder in a weather sealed stainless steel case, with end internal fixing threads. For use in tension and compression loaded in line with the axis.

F205

Standard Ranges 1000 and 2000kN (100 and 200tonnef)

Geometry: Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications.

F207

Standard Ranges 10, 20, 40, 80, 100, 120, 160 and 200kN (1 to 20tonnef)

Geometry: Axial strain cylinder in weather sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications on a wide range of OEM or end-user applications.

F209

Standard Ranges 1000, 2000 and 4000kN (100 to 400tonnef)

F209 Donut Loadcell. Geometry: Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications.

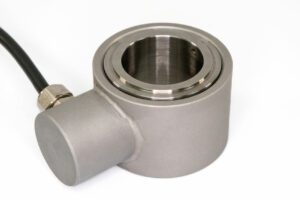

F210

Standard Ranges 7.5, 10, 15, 25 and 50kN (750kgf to 5tonnef)

F210 Donut Loadcell. Geometry: Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications.

F214

Standard Ranges 15, 30 and 60kN (1.5 to 6tonnef)

Geometry: Axial strain rod in weather sealed case, with external fixing threads. For use in tension or compression.

F216

Standard Ranges 5, 10, 20 and 40kN (500kgf to 4tonnef)

Geometry: Axial strain cylinder in weather sealed case, with raised end load bearing faces. For use in compression.

F218

Geometry: Small column in a sealed case, with a domed top load bearing face. For use in compression.

F225

Standard Ranges 50 and 100kN (5 and 10tonnef)

Geometry: Ultra low profile axial loadcell for use in force measurements in compression.

F232 /F233

Ranges 100N to 5kN (10 to 500kgf)

The F232 measures forces in two axes at 90° and the F233 measures forces in 3 mutually perpendicular axes. Apart from error evaluations, each output is pure and requires no mathematical manipulation.

F238

Standard Ranges 50, 100 and 300N (5 to 30kgf)

The F238 is a compact binocular bending beam loadcell for force measurements. This type of binocular beam is often referred to as a single point loadcell.

F241

Standard Ranges 30, 50, 100 and 300N (3 to 30kgf)

Geometry: Flexure strain assembly in cylindrical housing, open or weather sealed with end internal fixing. For universal use in tension and compression, with compensation for off axis load inputs.

F245

Standard Ranges 100, 200, 400 and 800N (10 to 80kgf)

Geometry: Flexure strain assembly in cylindrical housing, open or weather sealed with end internal fixing. For universal use in tension and compression, with compensation for off axis load inputs.

F250

Standard Ranges 100, 200, 400 and 800N (10 to 80kgf)

F250 Miniature Diaphragm Loadcell. Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.

F251

Standard Ranges 100, 200, 400 and 800N, 1.6 and 3.2kN (10 to 320kgf)

Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.

F252

Standard Ranges 1, 2, 4, 8 and 10kN (100kgf to 1tonnef)

Geometry: Low profile axial loadcell for use in force measurements in tension and compression.

F254

Standard Ranges 25, 50, 100 and 200kN (2.5 to 20tonnef)

Geometry: Shear web structure with high vertical and lateral mechanical stiffness.

F255

Standard Ranges 100, 200, 400, 800N and 1.6, 3.2 and 6.4kN (10 to 640kgf)

F255 Miniature Diaphragm Loadcell. Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.

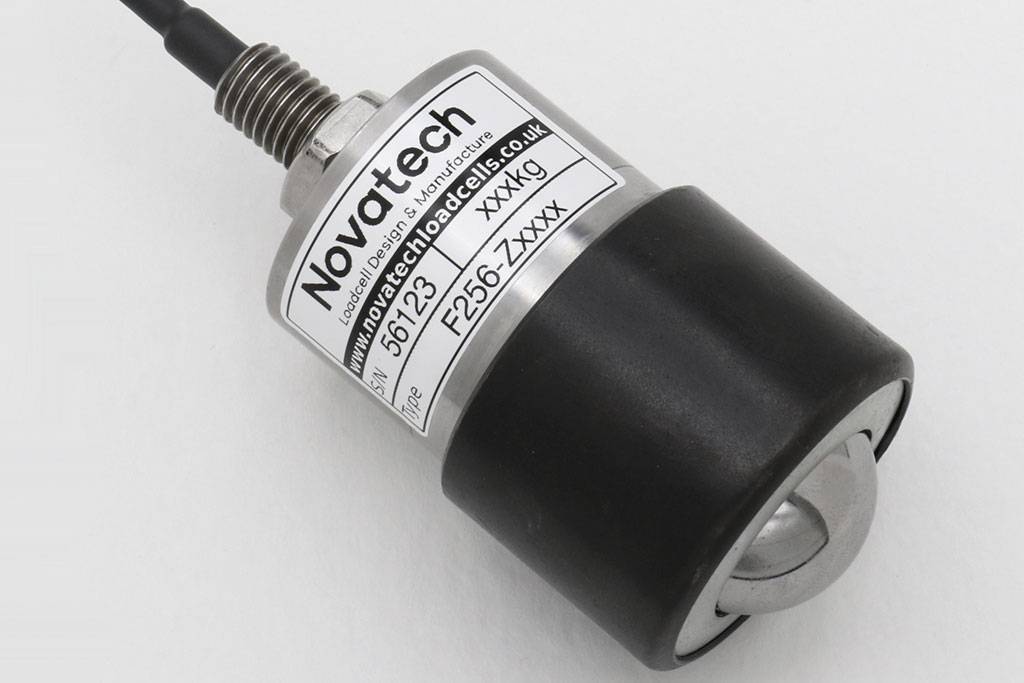

F256

Standard Ranges 200, 400, 800N and 1.25, 2.5, 5, 10, 20, 40, 60kN (20kgf to 6tonnef)

Geometry: Beam and diaphragm combination. Tension, compression and bi-directional options are available. All standard bi-directional loadcells are calibrated in both modes.

Set-up

Standard Ranges 1.25, 2.5 and 5kN (125 to 500kgf)

This F256 loadcell assembly is designed specifically to be easily fitted to customer designed set-up wheels. Incorporating a ball transfer base means that the car can easily be positioned precisely in the workshop.

F257

Standard Ranges 80, 120, 160 and 240kN (8 to 24tonnef)

Geometry: Beam and diaphragm combination. Tension, compression and bi-directional options are available. All standard bi-directional loadcells are calibrated in both modes.

F259

Standard Ranges 250, 500N and 1kN (25 to 100kgf)

Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.

F268

Standard Ranges 5, 10, 20, 40, 80, 120 and 160kN (0.5 to 16tonnef)

Geometry: Shear strain beam for use in all process weighing applications and also engineering force measurement in compression or tension.

F300

Standard Ranges 1, 2, 5, 10, 20, 50, 100, 200 and 400kN (100kgf to 40tonnef)

Benefiting from advanced machining techniques, the F300’s complex beam structure offers reliable error compensation in a cylindrical, 'donut' style footprint.

F301

Standard Ranges 1 and 3N (100 and 300gf)

The F301 is a compact bending beam loadcell for low range force measurements. Its small diameter eases mounting problems in existing systems. All standard bi-directional loadcells are calibrated in both modes.

F302

Standard Ranges 5, 10, 25 and 50kN (500kgf to 5tonnef)

Geometry: Low profile axial loadcell for use in force measurements in compression.

F303

Standard Ranges 20 and 40kN (2 and 4tonnef)

The F303 is aimed at the volume OEM user who requires a reliable high quality axial sensor at a low price for low accuracy compressive force measurement in equipment.

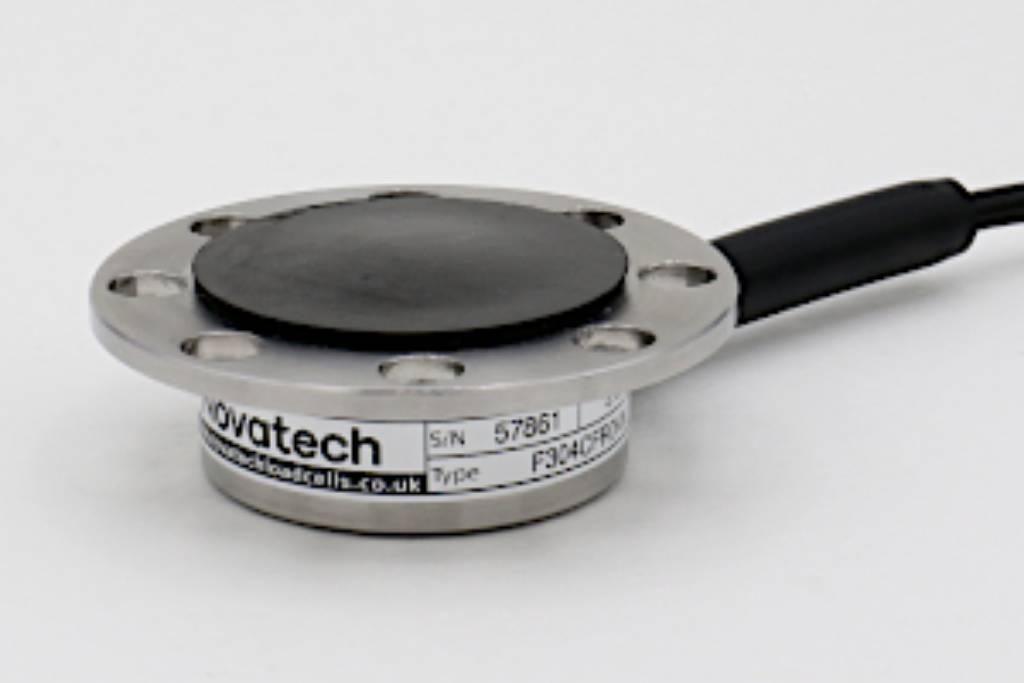

F304

Standard Range 2.5kN (250kgf)

The F304 is a compact, low profile loadcell for measuring brake pedal application forces.

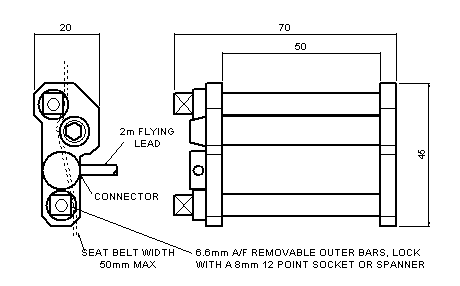

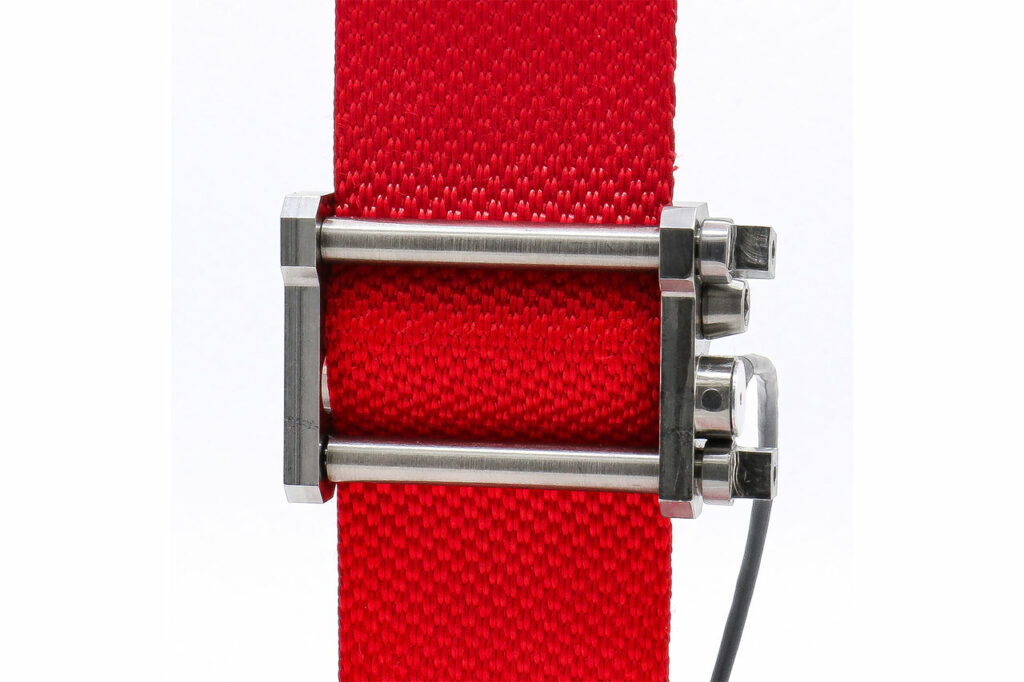

F305

The F305 is a high performance loadcell for measuring seat belt tension forces.

F306

Standard Ranges 50, 200, 500N and 1, 2, 5, 10kN (5kgf to 1tonnef)

Geometry: Very low profile disc loadcell for use in force measurements.

F307

Standard Ranges 10kN and 20kN (1 and 2tonnef)

The F307 loadcell provides a bi-directional direct measurement of the X, Y and Z components resulting from a force vector. Apart from error evaluations, each output is pure and requires no mathematical manipulation.

F308

Standard Ranges 50, 100, 200, 500N and 1, 1.5, 2, 2.5kN (5 to 250kgf)

The F308 is a compact axial loadcell with improved EFI compared to diaphragm loadcells.

F310

Range 50N and 2Nm

Geometry: Monocoque strain structure with no moving parts.

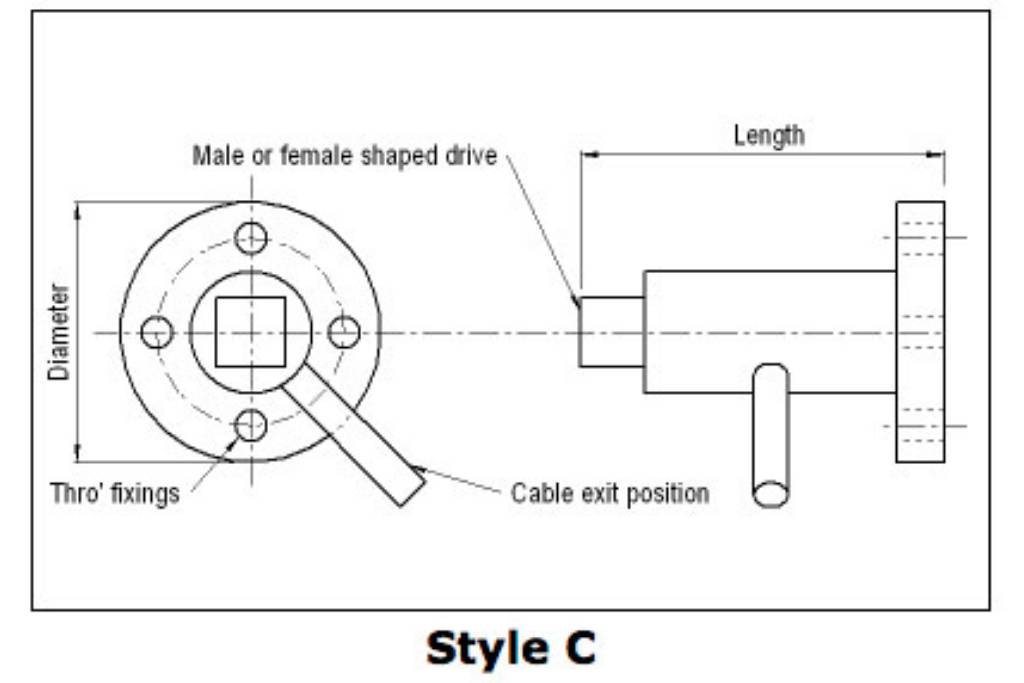

F311

2 to 2000Nm

We can manufacture static torque transducers with ranges between 2Nm and 2000Nm to your specific requirements.

F312

Custom Ranges

We can manufacture shear pin loadcells to your specific requirements.

F313

Standard Ranges 10, 20, 40, 80, 100, 120, 160 and 200kN (1 to 20tonnef)

Geometry: Axial strain cylinder in weather sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications on a wide range of OEM or end-user applications.

F314

Ranges 2kN to 10kN (200kgf to 1tonnef)

The F314 measures forces in two axes at 90°. Apart from error evaluations, each output is pure and requires no mathematical manipulation.

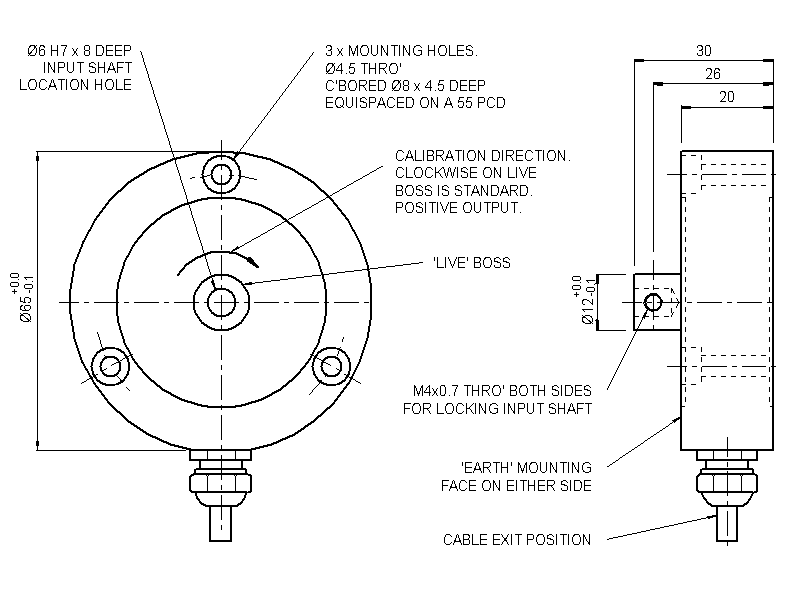

F315

Ranges 10milliNm to 5Nm

Geometry: Slender disc, with outer ring earth fixing and live inner boss usually shaft driven.

F317

Standard Ranges 5, 10, 25, 50, 100, 250, 500 and 1000kN (500kgf to 100tonnef)

The F317 is a high performance cylindrical loadcell offering a high degree of output symmetry in compression and tension.

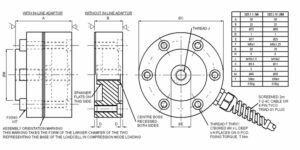

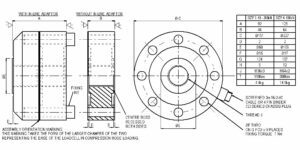

F318

Standard Ranges 1, 2, 5, 10, 20, 50, 100, 200 and 500kN (100kgf to 50tonnef)

Geometry: Shear web structure with high axial and lateral mechanical stiffness.

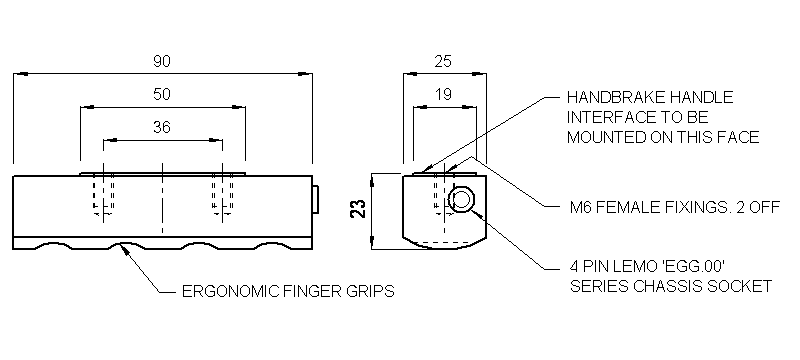

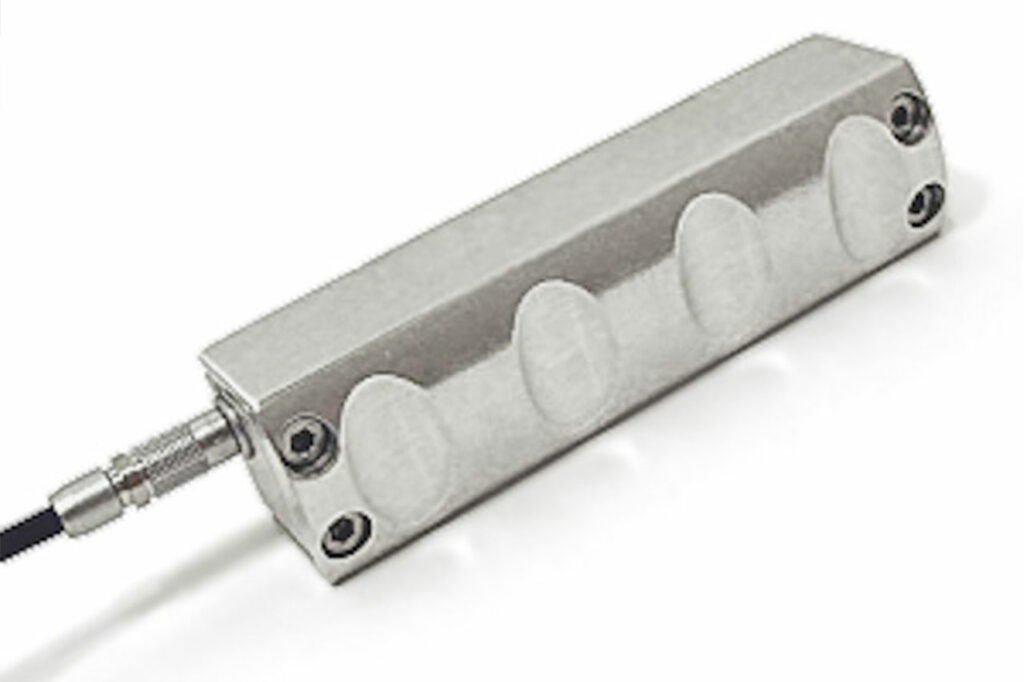

F319

Standard Range 1kN (100kgf)

The F319 handbrake loadcell offers an excellent technical solution to measurement of an ergonomic force.

F320

Standard Ranges 5kN to 50kN (500kgf to 5tonnef)

The F320 is a heavy duty variant on the binocular bending beam loadcell.

F321

Standard Range 200N (20kgf)

The F321 gear shift loadcell measures gear lever forces required to achieve gear selection.

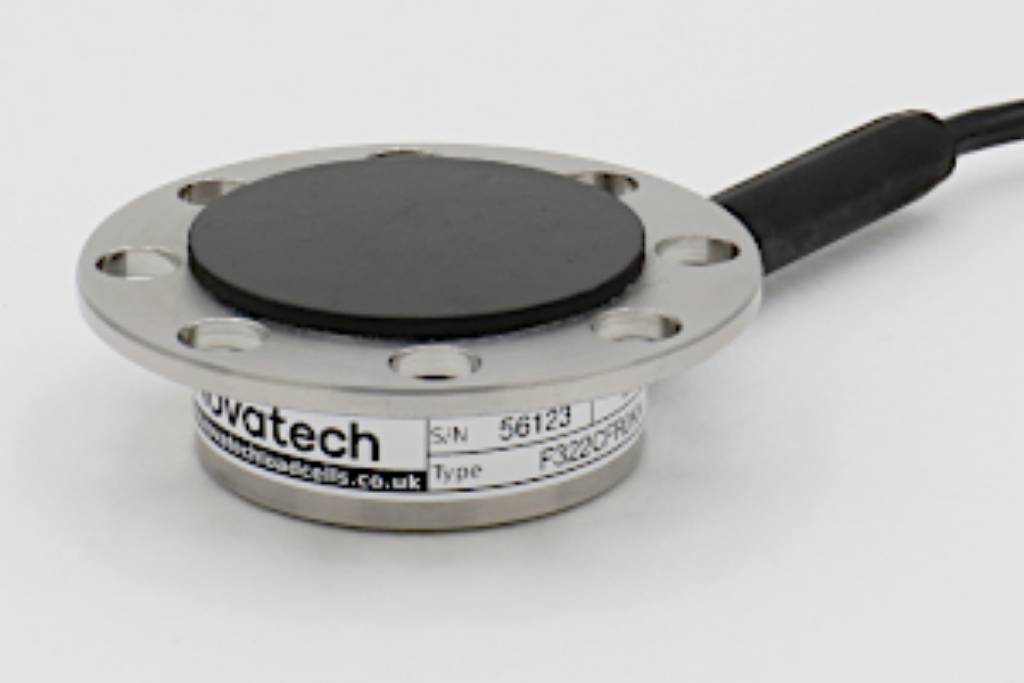

F322

Standard Range 250N (25kgf)

The F322 is a compact, low profile loadcell for measuring accelerator pedal application forces.

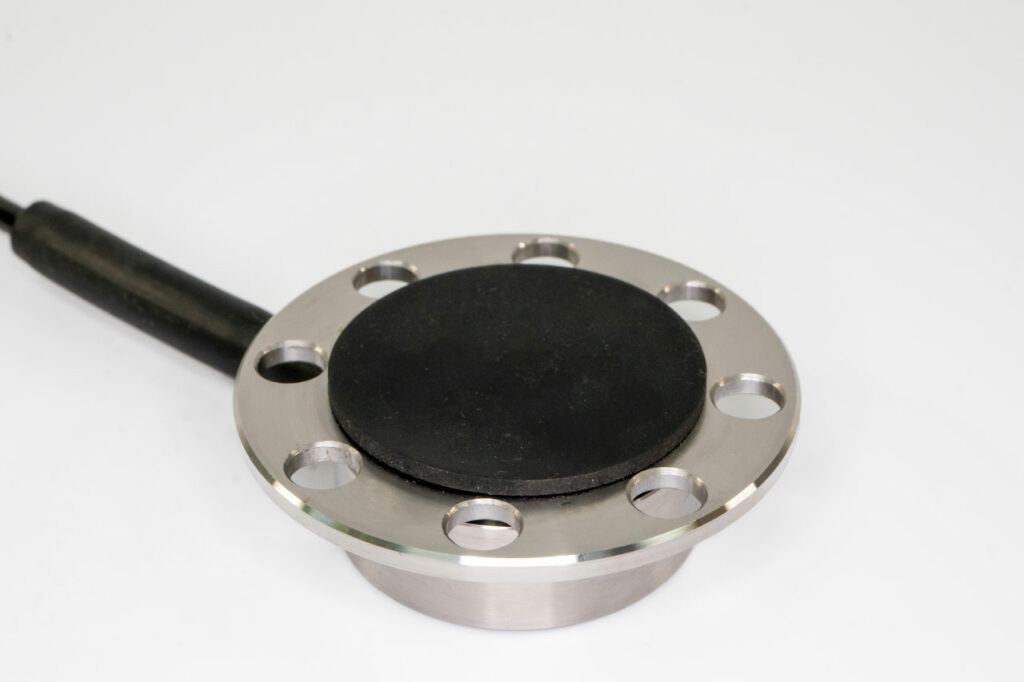

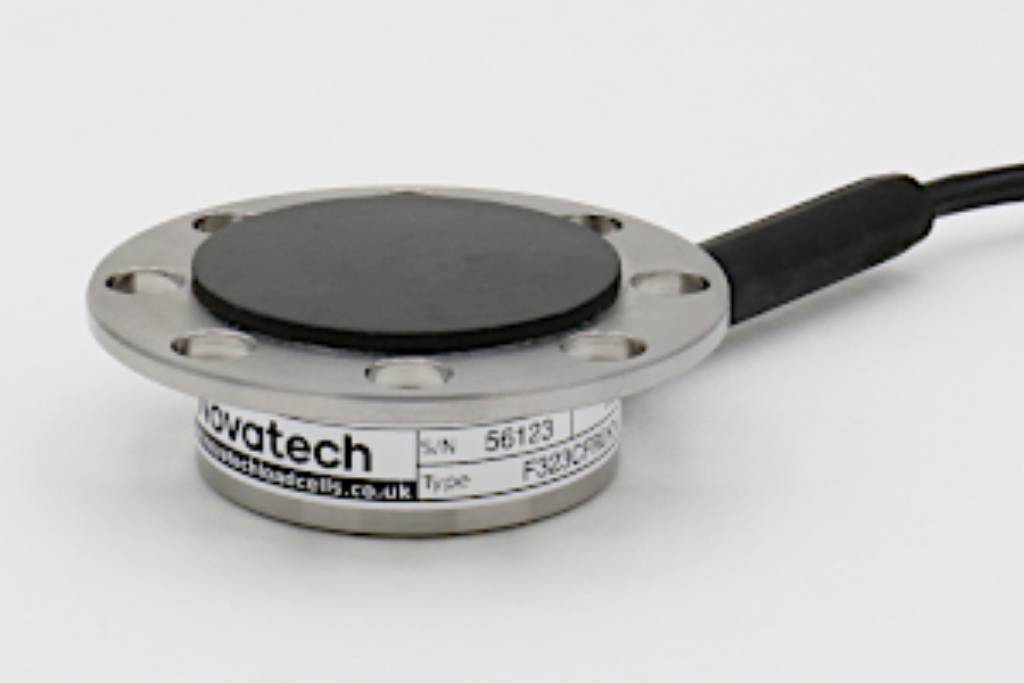

F323

Standard Range 1kN (100kgf)

The F323 is a compact, high accuracy low profile loadcell for measuring clutch pedal application forces.

F325

Standard Ranges 50, 100, 200 and 500N (5 to 50kgf)

This high precision web tension loadcell is designed and built to meet the needs of machine designers, installation fitters and end users by the incorporation of alignment features with maximum flexibility.

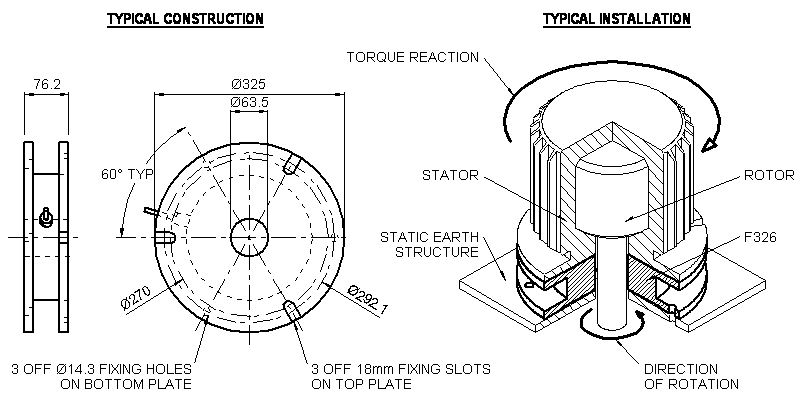

F326

Standard Range 20Nm

The F326 fits between a motor and its mounting structure acting as a low profile coupling or adaptor plate.

F327

Standard Ranges 10, 20, 50, 100, 200, 500, 1000 and 2000kN (1 to 200tonnef)

The F327 is a robust canister loadcell that is ideally suited to compression force measurement applications in harsh conditions.

F328

Standard Ranges 10, 20, 50, 100, 200 and 500N (1 to 50kgf)

The F328 is an axial low force universal loadcell with quantified extraneous load and moment rejection.

F329

Standard Range 0.1N (10gf)

The F329 is a specialist force measurement device.

F330

Standard Ranges 0.5, 1, 2.5, 5, 10 and 20N (50gf to 2kgf)

The F330 low range loadcell has been developed to meet a growing need for high resolution, low range force measurement with minimal translational deflection.

F331

Standard Ranges 0.5, 1, 2.5, 5, 10 and 20N (50gf to 2kgf)

The F331 low range loadcell has been developed to meet a growing need for high resolution, low range force measurement with minimal translational deflection.

F332

Ranges 0.1N to 100N (10gf to 10kgf)

The F332 measures bi-directional forces in two perpendicular axes. The force range for each axis can be custom picked and do not need to be identical for optimum performance. Apart from uncomplicated error evaluations, each output is pure and requires no mathematical manipulation.

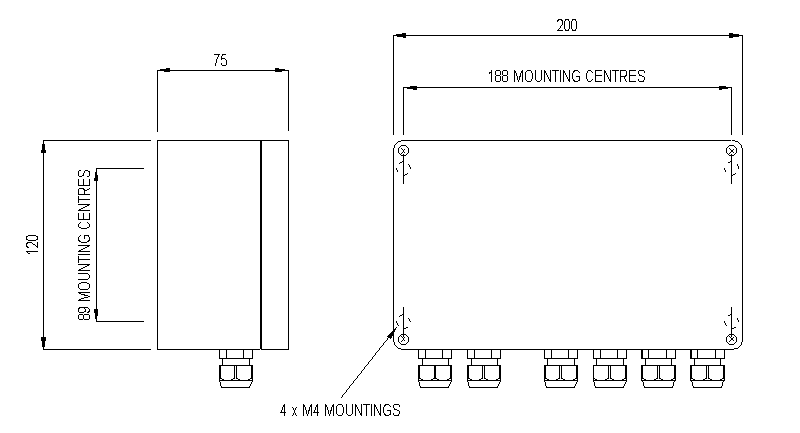

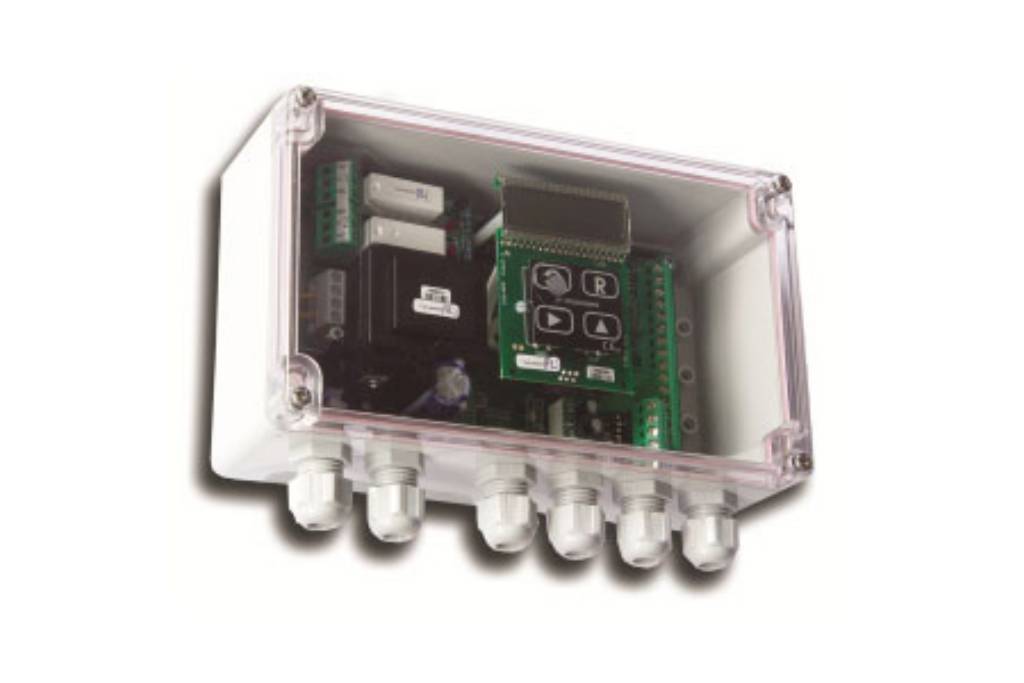

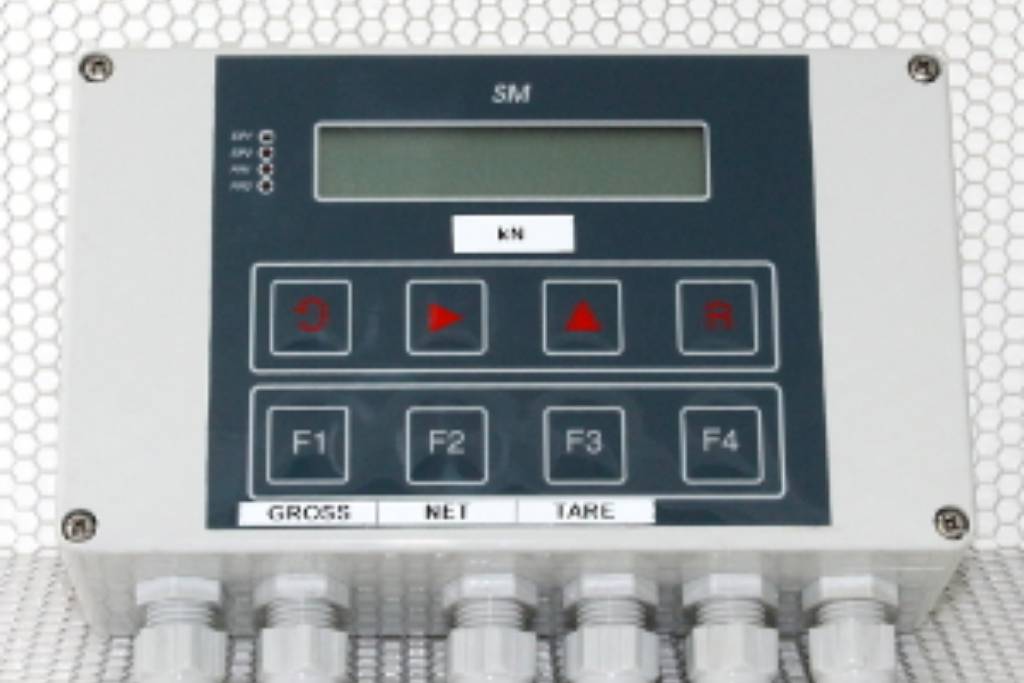

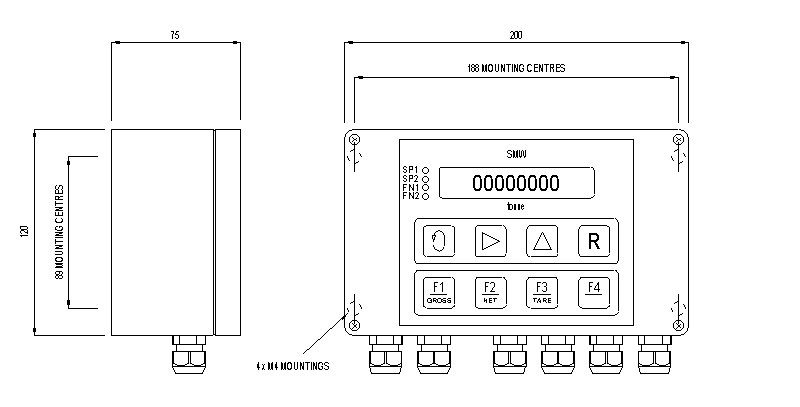

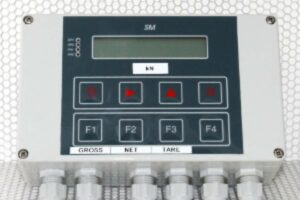

SMW

This panel or wall mounting loadmeter is designed for use with strain gauge loadcells.

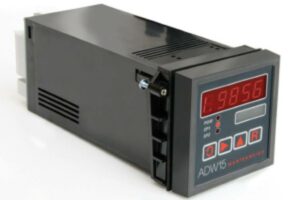

ADW15

This intelligent self contained loadmeter is designed for use with strain gauge loadcells.

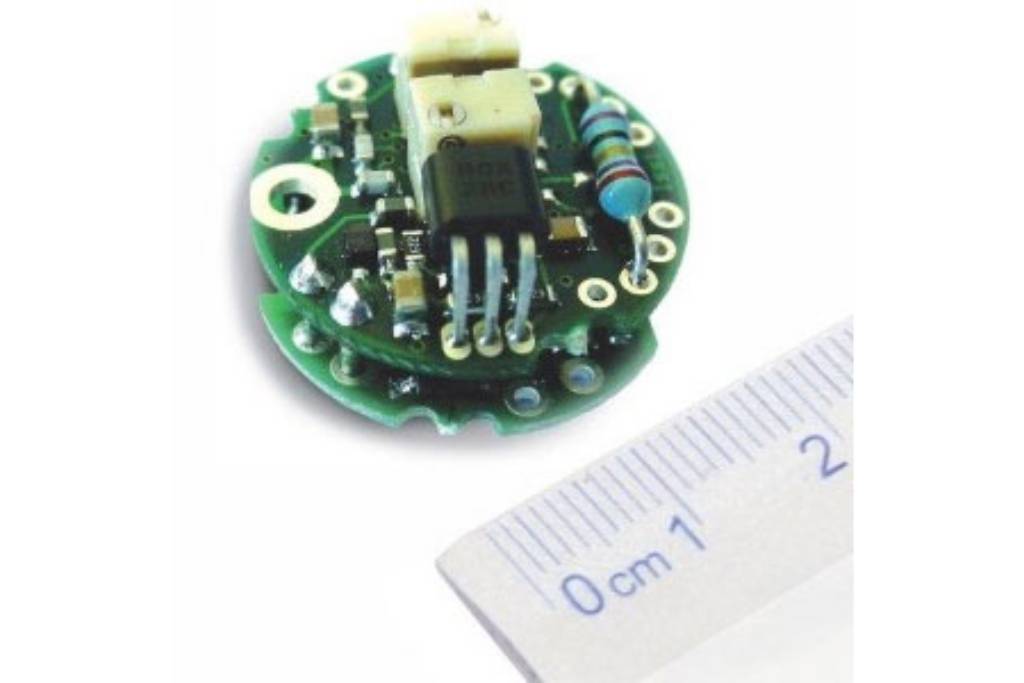

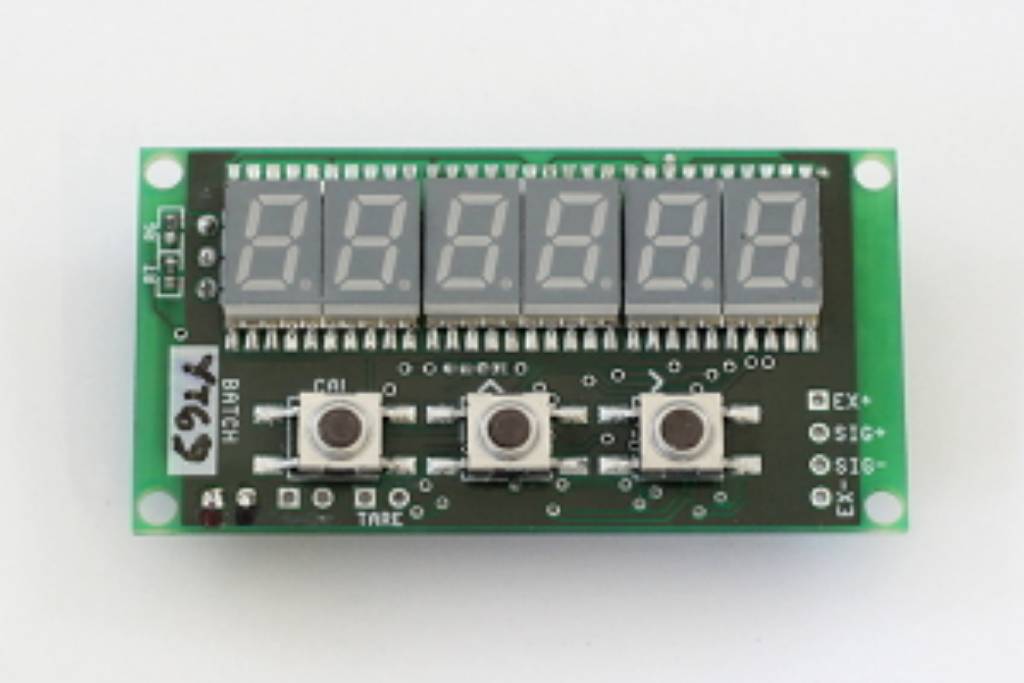

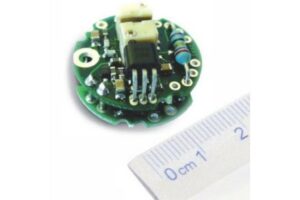

SD039

This small loadmeter is designed for mounting in modified strain gauge loadcells.

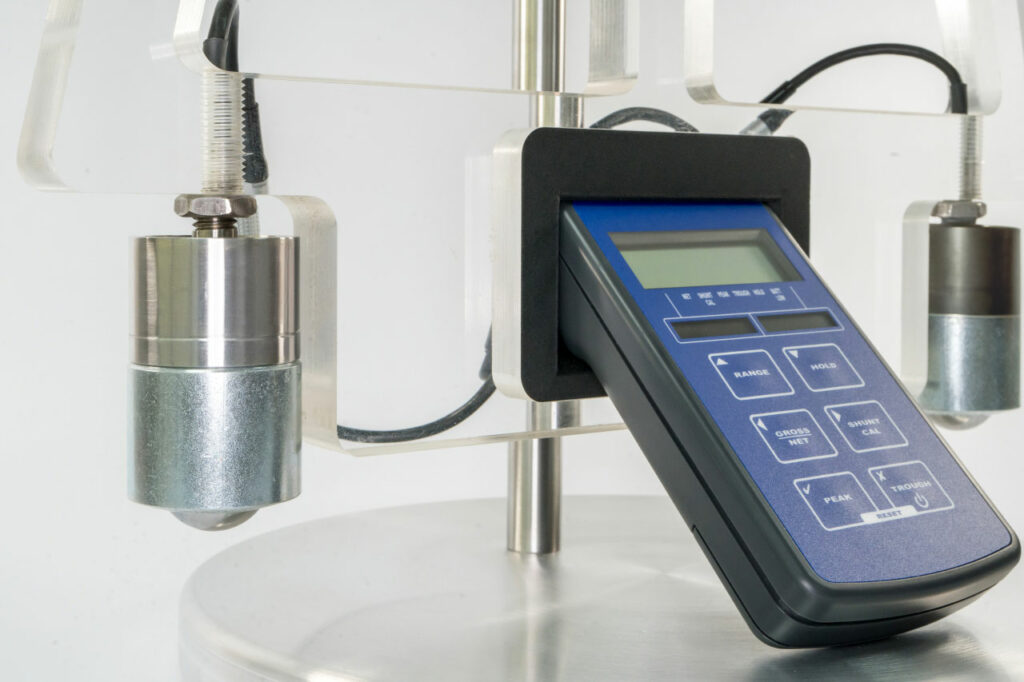

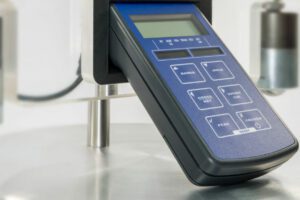

TR150

The TR150 is a completely portable, precision instrument packaged in a small, robust IP65 (NEMA 4) enclosure, weighing only 260 grams. The TR150 accepts an input range of up to 50mV/V.

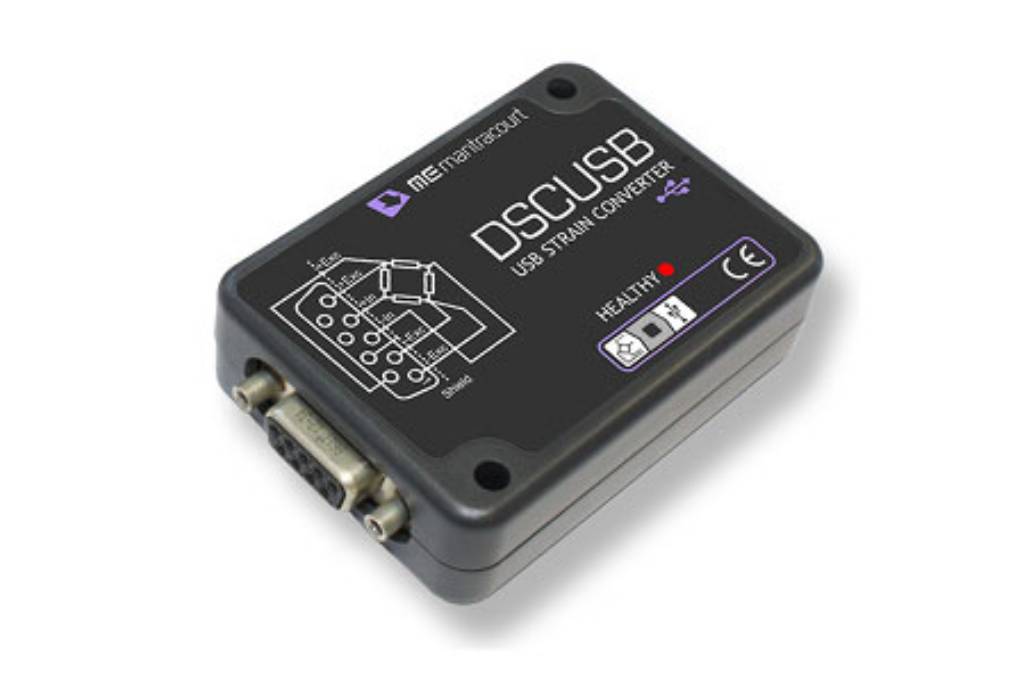

DSCUSB

The DSC USB is a compact, high performance digital signal conditioner with USB connectivity aimed at applications, which require high-accuracy measurement repeatability.

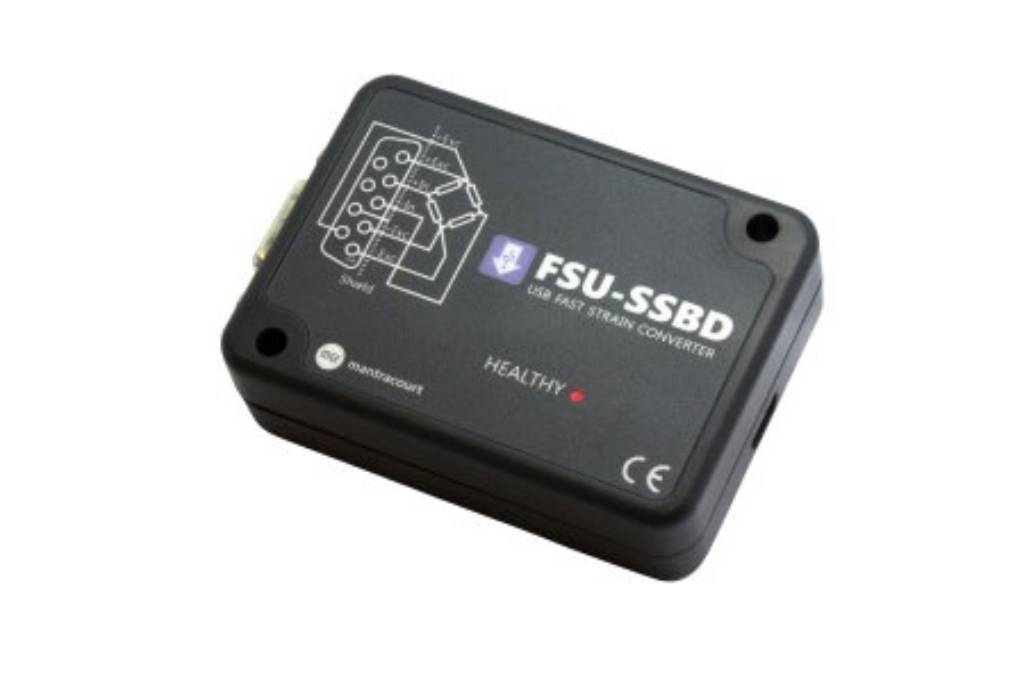

FSU-SSBD

The FSU-SSBD is a fast, compact, high precision loadcell input module delivering high resolution readings over USB and communicated directly to a PC.

ICA6H

This miniature loadcell amplifier is designed for use with strain gauge loadcells. It has a bi-polar ±10V output for use with bi-directional loadcells even though it is powered from a uni-polar supply.

LCA20

The LCA15 has been redesigned to become the LCA20 taking advantage of new technology to improve performance and increase functionality.

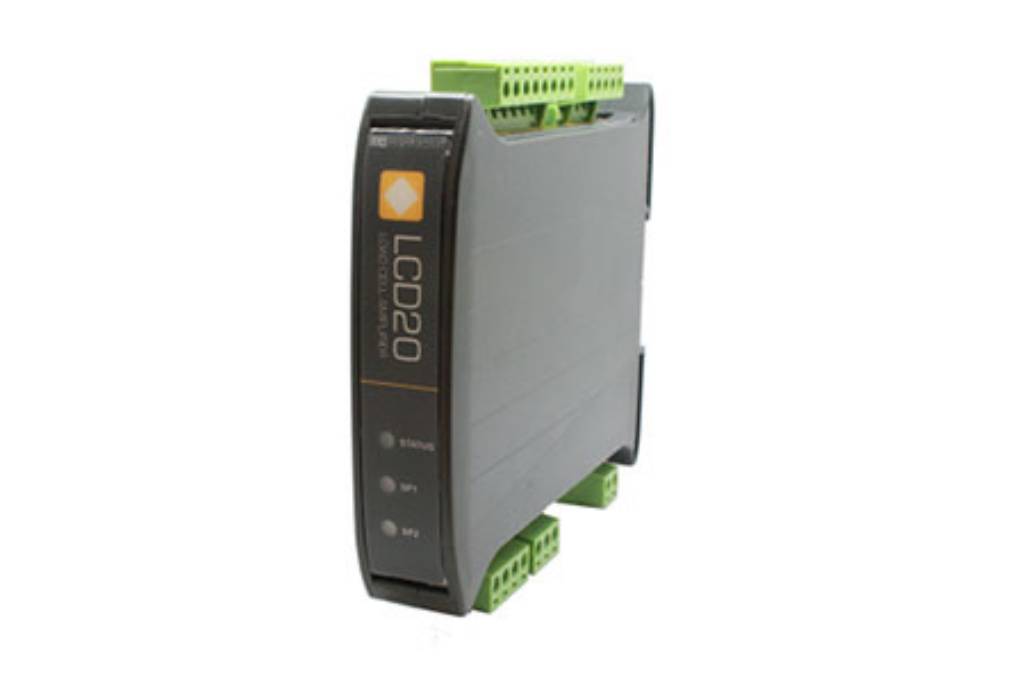

LCD20

The LCD20 intelligent loadcell amplifier is a compact, DIN rail mounted microprocessor based unit for use with strain gauge bridge loadcells in force measuring applications.

SGA

The SGA loadcell amplifier is designed for use with strain gauge loadcells. It provides industry standard current or voltage outputs for accurate interfacing of loadcells with control and monitoring systems.

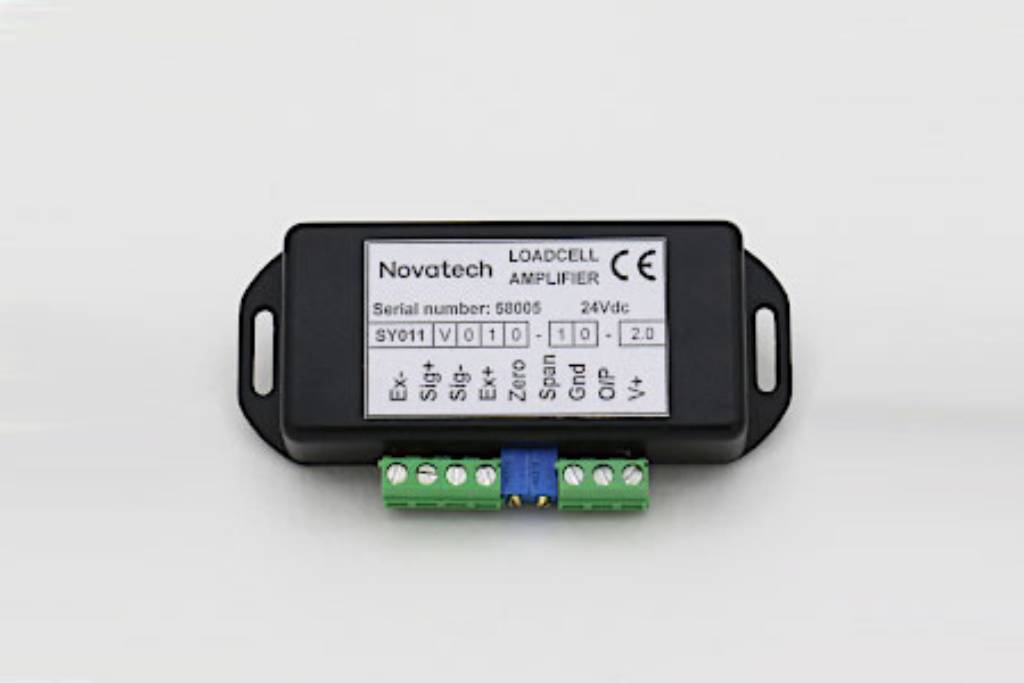

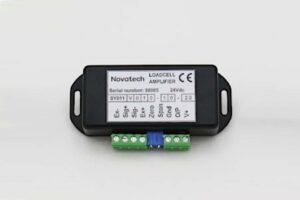

SY011

This loadcell amplifier is designed for use with strain gauge loadcells.

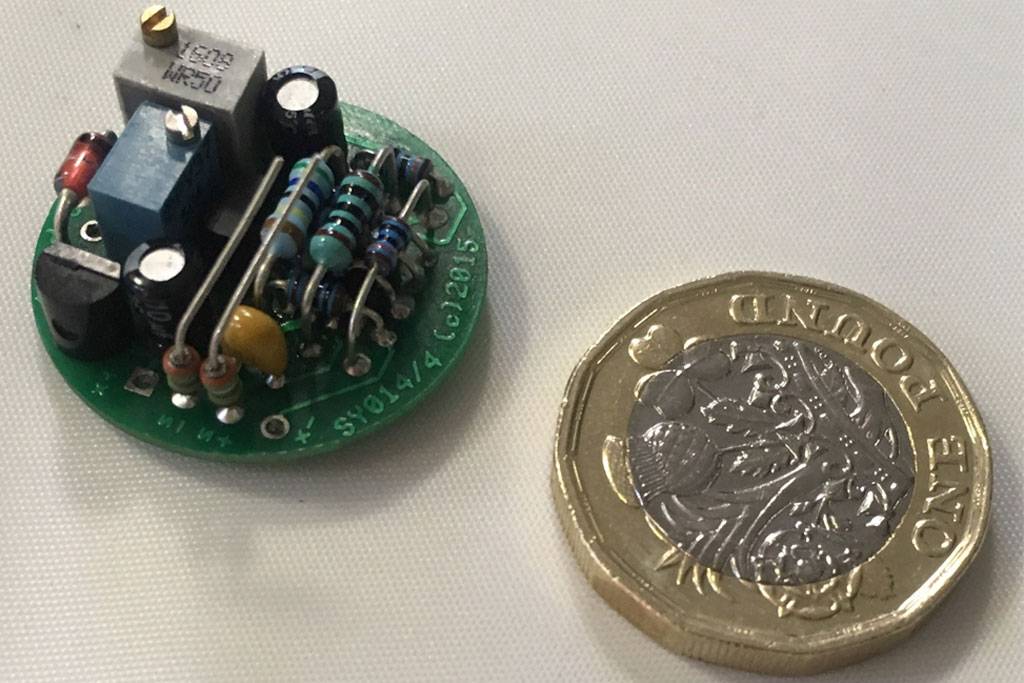

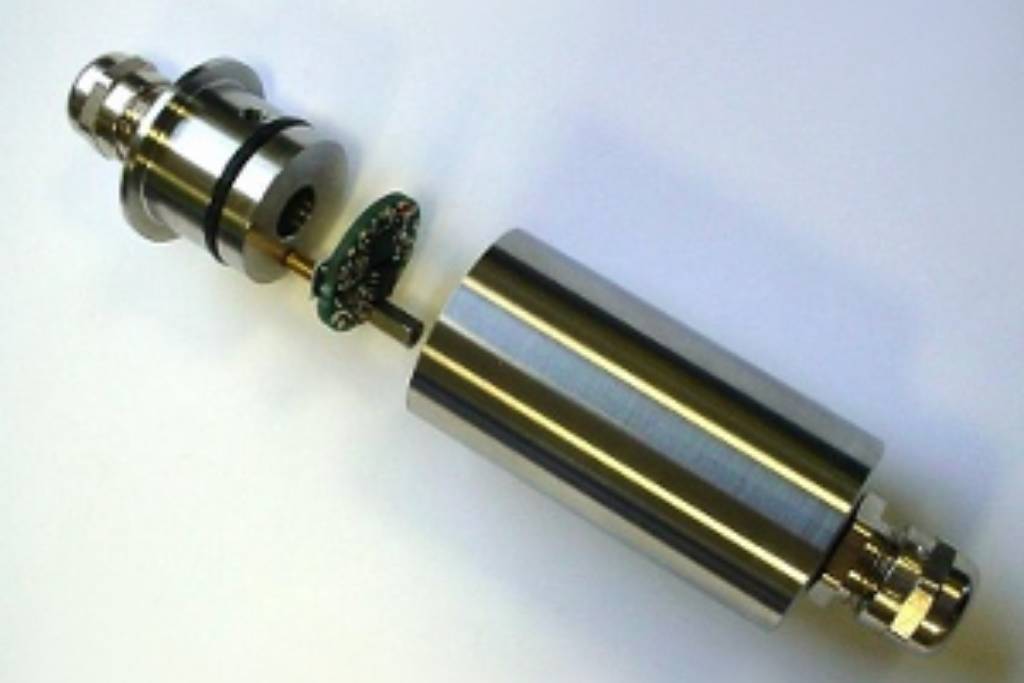

SY014

This loadcell amplifier is designed for mounting inside the F256 and F257 loadcells.

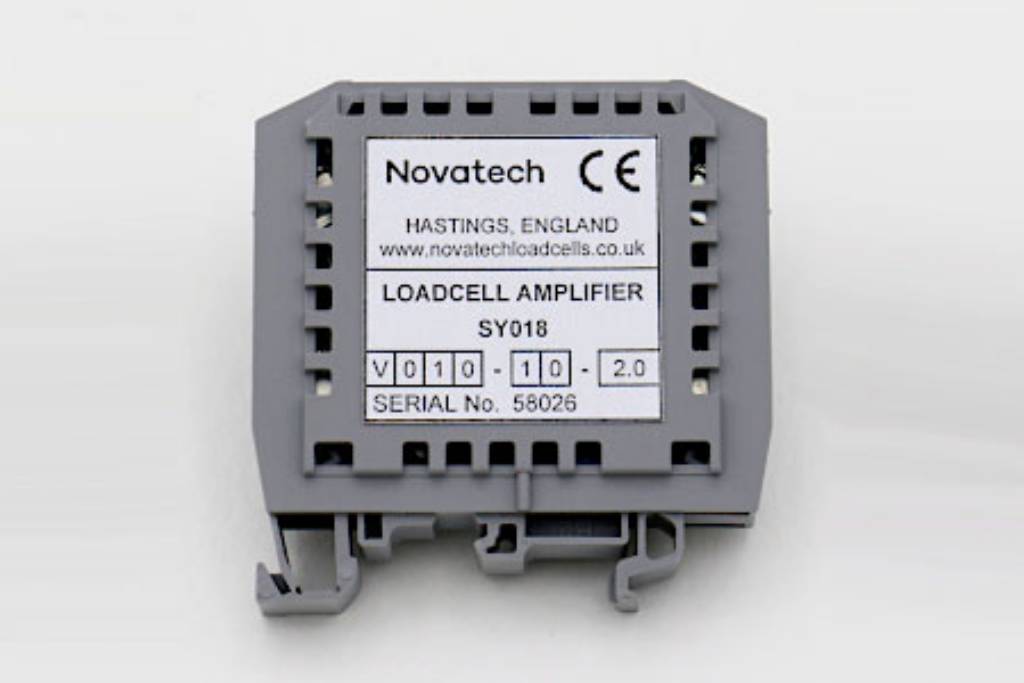

SY018

This DIN rail mounted loadcell amplifier is designed for use with strain gauge loadcells.

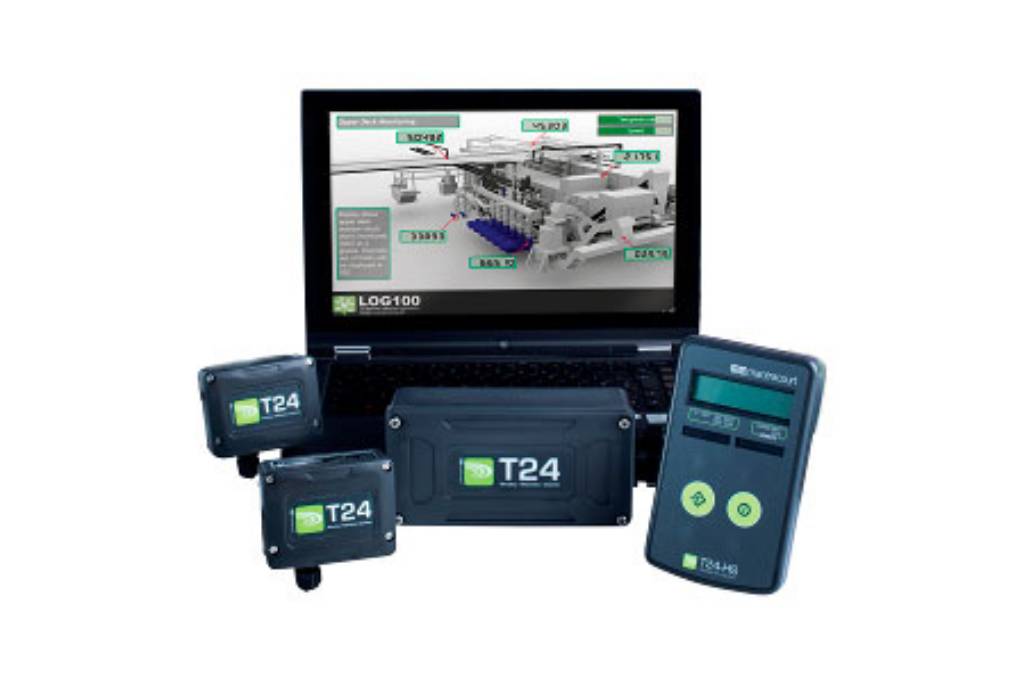

T24-SYS

The T24 telemetry range is a flexible radio telemetry system designed to provide high accuracy measurement data from strain gauge loadcells.

T24-SYSC

The T24 telemetry range is a flexible radio telemetry system designed to provide high accuracy measurement data from strain gauge loadcells.

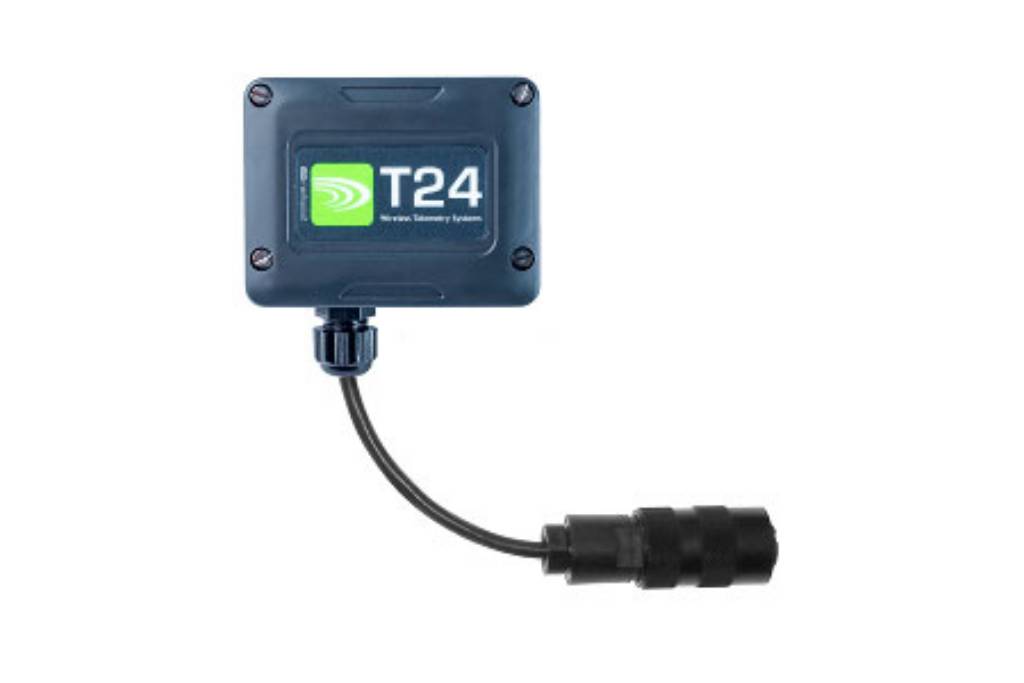

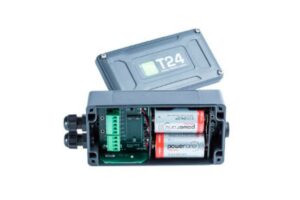

T24-ACM/SA

This remote loadcell data acquisition unit provides high performance wireless measurement of loadcell outputs. Providing direct mV/V input and 5V bridge excitation for up to 4 load cells.

T24-ACMi/SA

This miniature loadcell data acquisition unit provides high performance wireless measurement of loadcell outputs. Providing direct mV/V input and 5V bridge excitation for up to 4 load cells.

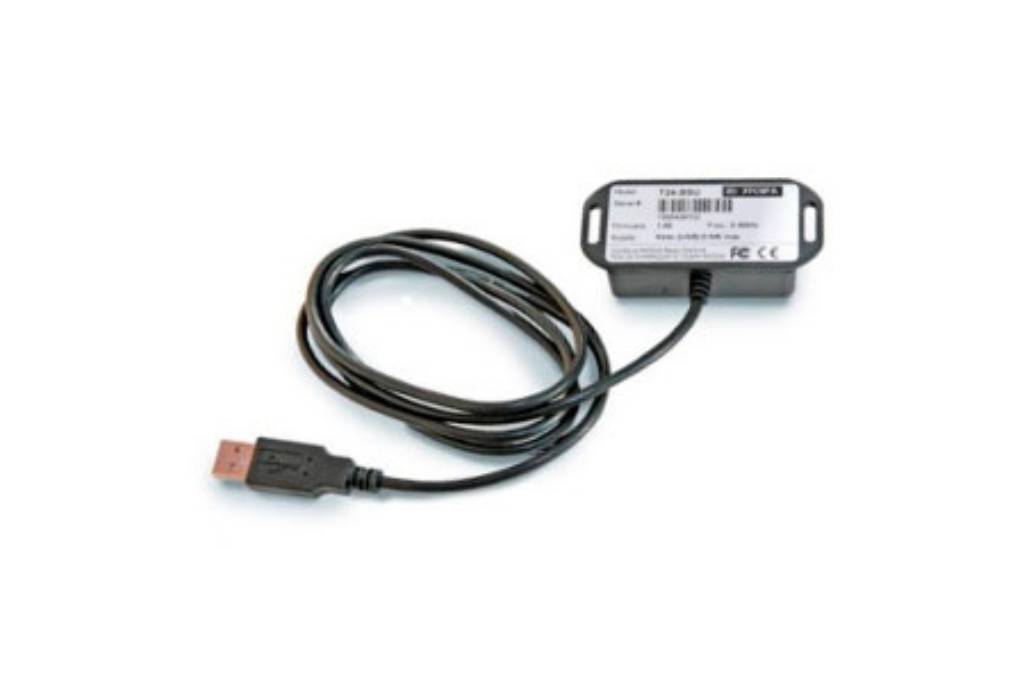

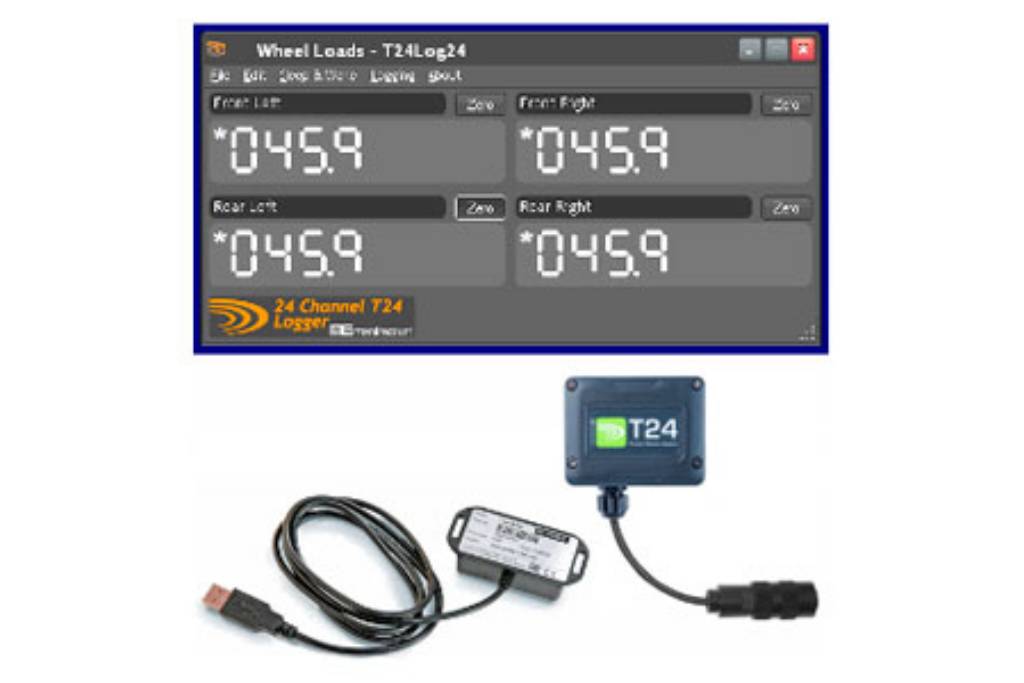

T24-BSu

The base station is a computer interface for the T24 telemetry system that connects to a standard USB port on a computer. It is required for the configuration of all T24 modules.

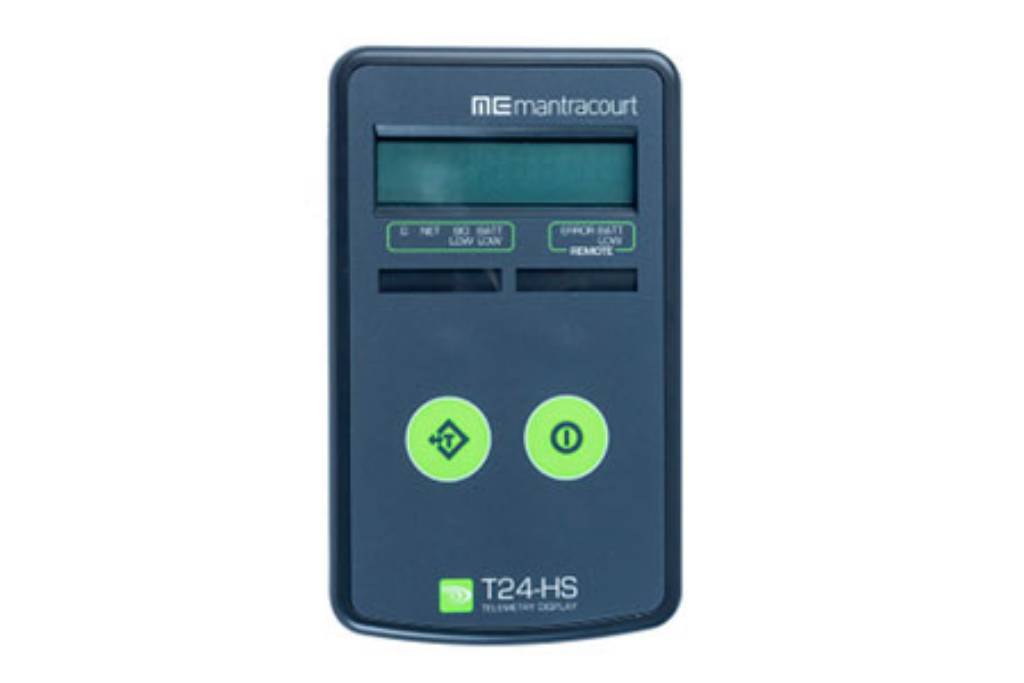

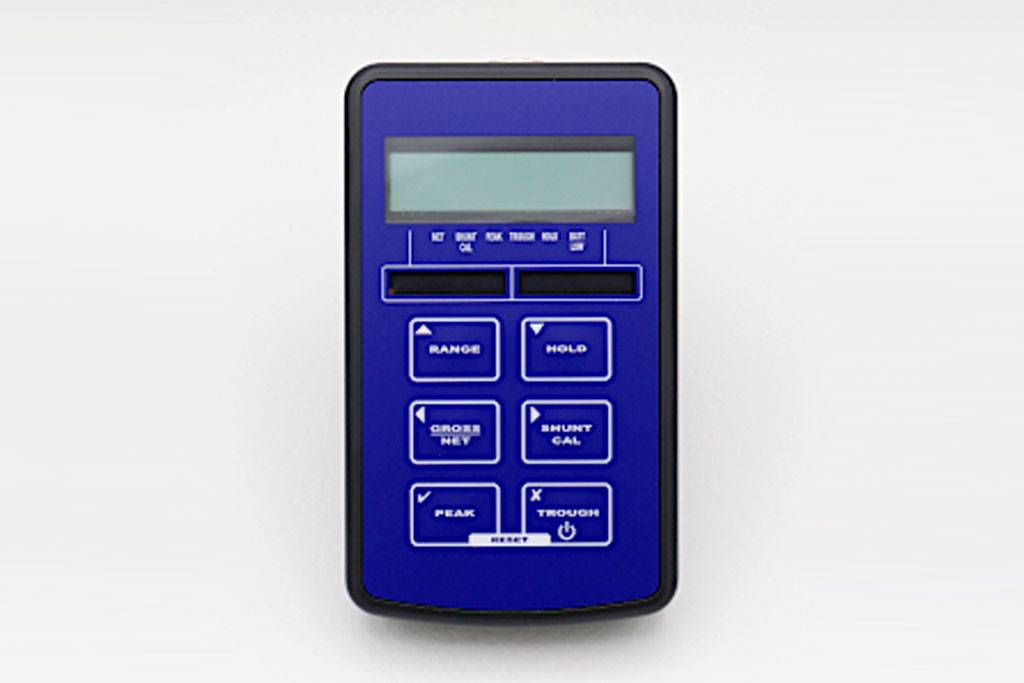

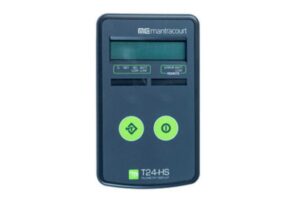

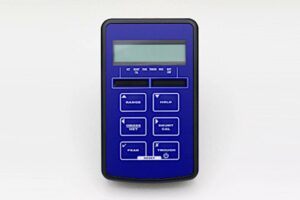

T24-HS

Single Channel

This wireless handheld display module provides an 8 digit LCD reading from a T24 loadcell data acquisition module.

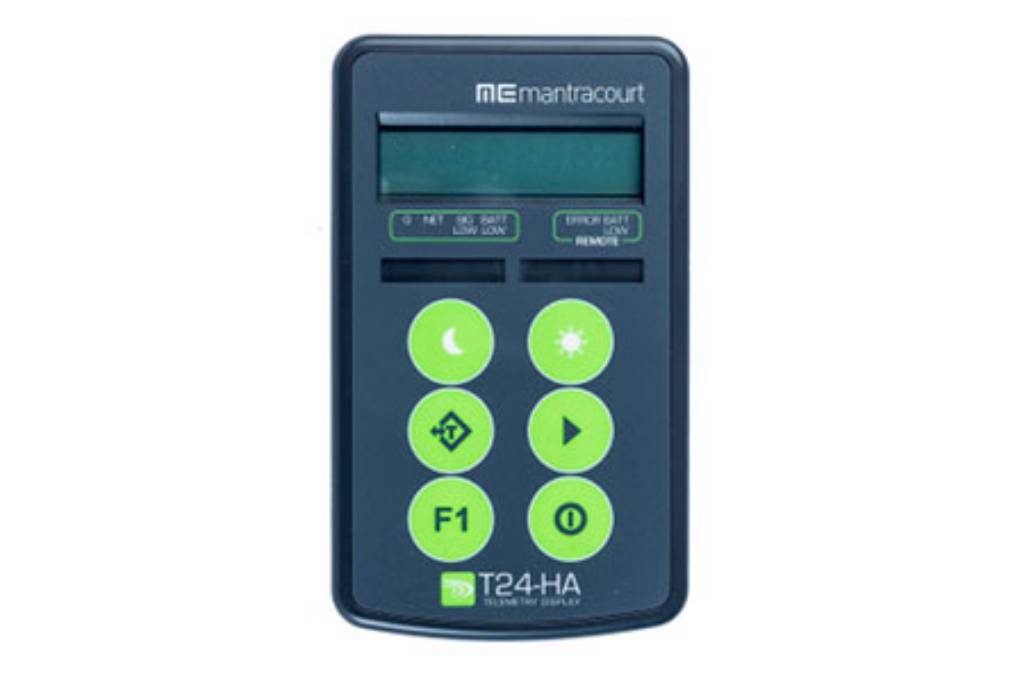

T24-HA

12 Channels

This wireless handheld display module provides an 8 digit LCD reading from up to twelve T24 loadcell data acquisition modules.
