| Novatech

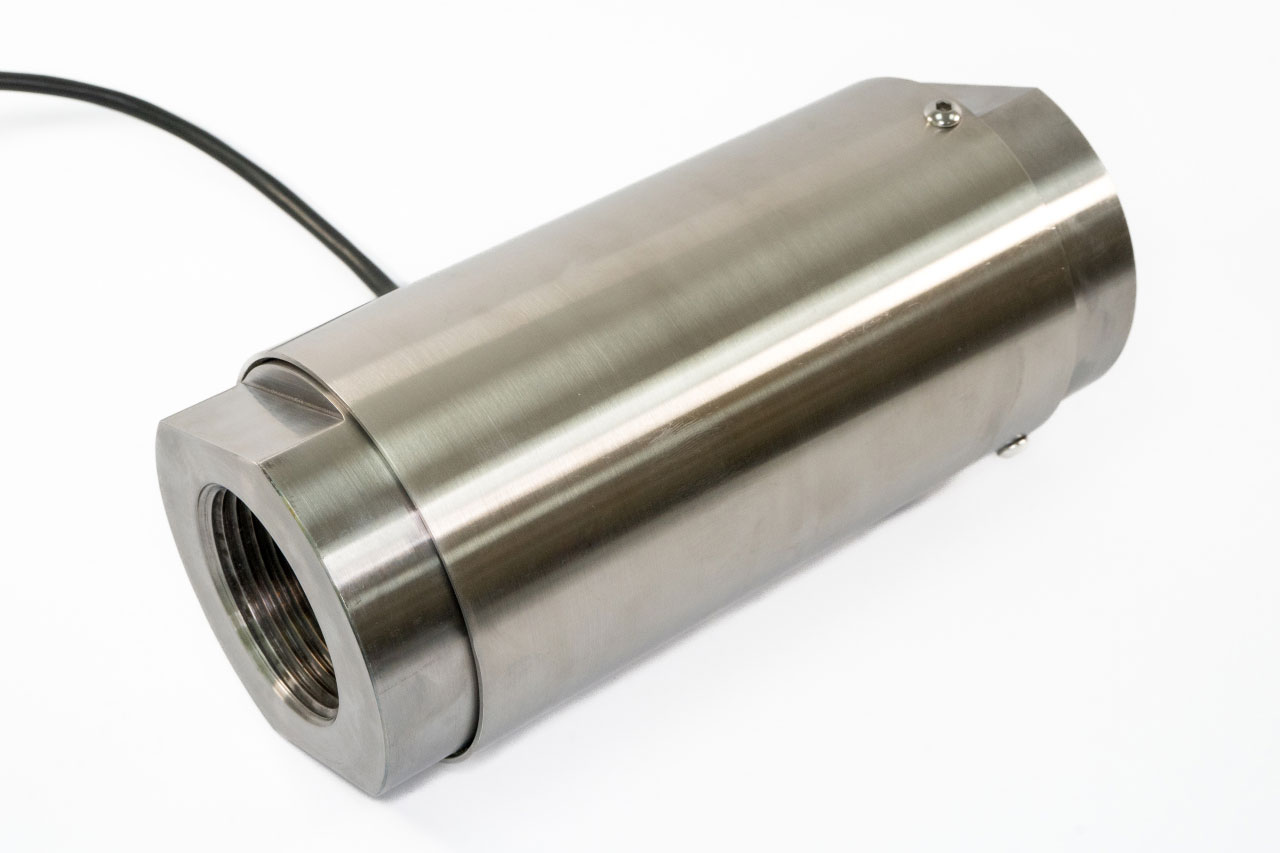

F204 Universal Loadcell

Standard Ranges 10, 25, 50, 100, 250 and 500kN (1 to 50tonnef)

  • Large internal interfacing threads
  • High structural load limit
  • Flying lead or connector option
  • Sealed to IP65
  • Traceable calibration with certificate included in the standard price
  • Standard 1 year warranty

Specification

Parameter

Value

Unit

Non-linearity - Terminal

±0.2 (10 to 100kN) / ±0.5 (250 to 500kN)

% RL

Hysteresis

±0.2 (10 to 100kN) / ±0.5 (250 to 500kN)

% RL

Creep - 20 minutes

±0.05

% AL

Repeatability

±0.02 (10 to 100kN) / ±0.03 (250 to 500kN)

% RL

Rated output - Nominal

1.2 (10 to 100kN) / 1.2 (250 to 500kN)

mV/V

Rated output - Rationalised

1.0 (10 to 100kN) / 1.0 (250 to 500kN)

mV/V

Rationalisation tolerance (applies to single direction calibrations)

±0.5 (10 to 100kN) / ±0.5 (250 to 500kN)

% RL

Zero load output

±4 (10 to 100kN) / ±4 (250 to 500kN)

% RL

Temperature effect on rated output per °C

±0.005 (10 to 100kN) / ±0.005 (250 to 500kN)

% AL

Temperature effect on zero load output per °C

±0.03 (10 to 100kN) / ±0.03 (250 to 500kN)

% RL

Temperature range - Compensated

-10 to +50 (10 to 100kN) / -10 to +50 (250 to 500kN)

°C

Temperature range - Safe

-10 to +80 (10 to 100kN) / -10 to +80 (250 to 500kN)

°C

Excitation voltage - Recommended

10 (10 to 100kN) / 10 (250 to 500kN)

V

Excitation voltage - Maximum

20 (10 to 100kN) / 20 (250 to 500kN)

V

Bridge resistance

700 (10 to 100kN) / 700 (250 to 500kN)

Ω

Insulation resistance - Minimum at 50Vdc

500 (10 to 100kN) / 500 (250 to 500kN)

Overload - Safe

50 (10 to 100kN) / 50 (250 to 500kN)

% RL

Overload - Ultimate

200 (10 to 100kN) / 200 (250 to 500kN)

% RL

Sealing

IP65 (10 to 100kN) / IP65 (250 to 500kN)

Weight - Nominal (excluding cable)

0.7 (10 to 50kN) / 3.2 (100 - 250kN) / 7.8 (500kN)

kg

All standard ranges are manufactured in stainless steel.

Geometry: Axial strain cylinder in a weather sealed stainless steel case, with end internal fixing threads. For use in tension and compression loaded in line with the axis.

With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.

The F204 is ideally suited to bi-directional engineering force measurements. They are used extensively within the automotive industry for testing of auto components. Standard rod end bearings are available for this product. If you require better performance than the F204 the F317 may be suitable.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

Order Codes

Code

Description

F204CFR0K0

Compression, IP65, unrationalised

F204TFR0K0

Tension, IP65, unrationalised

F204UFR0K0

Bi-directional, IP65, unrationalised

F204CFR0KN

Compression, IP65, rationalised

F204TFR0KN

Tension, IP65, rationalised

F204UFR0KN

Bi-directional, IP65, rationalised

Structural Stiffness - Nominal

Range (kN)

Stiffness (N/m)

10

2.8 x 108

25

7.0 x 108

50

1.4 x 109

100

2.7 x 109

250

6.8 x 109

500

1.4 x 1010

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.
  • The load must be applied directly through the central loading axis.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 16-2-4C or a 4 pin Binder 723 series chassis plug.

Excitation + = Red or pin 1, Excitation - = Blue or pin 2, Signal + = Yellow or pin 3, Signal - = Green or pin 4, Screen = Orange.

Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.

Files

Type

Title

Download

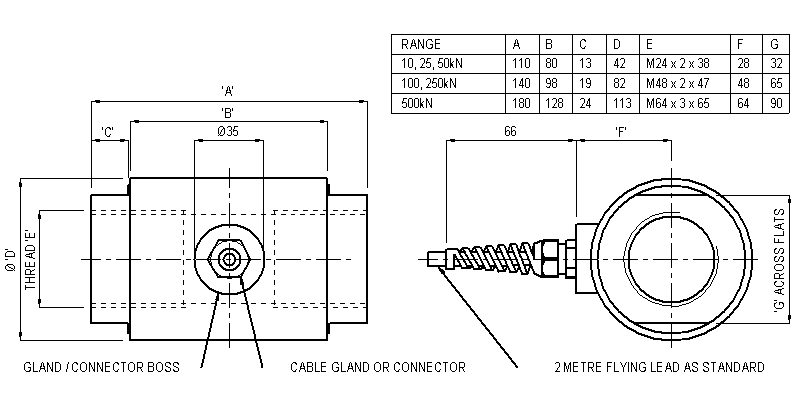

Outline

Outline drawing of the product.

Download

STEP File

F204-C/T/U-FR0K0 10 to 50kN (1 to 5tonnef)

Download

STEP File

F204-C/T/U-FR0K0 100 to 250kN (10 to 25tonnef)

Download

STEP File

F204-C/T/U-FR0K0 500kN (50tonnef)

Download

STEP File

F204-C/T/U-PR0K0 10 to 50kN (1 to 5tonnef)

Download

STEP File

F204-C/T/U-PR0K0 100 to 250kN (10 to 25tonnef)

Download

STEP File

F204-C/T/U-PR0K0 500kN (50tonnef)

Download
