F254 Fatigue Rated Pancake Loadcell

Standard Ranges 25, 50, 100 and 200kN (2.5 to 20tonnef)

  • Tension / compression / bi-directional calibration
  • Low profile
  • Custom modifications to suit your application
  • Sealed to IP65
  • Hardened stainless steel construction
  • Traceable calibration with certificate included in the standard price

Specification

Parameter

Value

Unit

Non-linearity - Terminal

±0.1

% RL

Hysteresis

±0.1

% RL

Creep - 20 minutes

±0.05

% AL

Repeatability

±0.02

% RL

Rated output - Nominal

2.1

mV/V

Rated output - Rationalised

2

mV/V

Rationalisation tolerance (applies to single direction calibrations)

±0.5

% RL

Output symmetry

±0.2

% AO

Fatigue life

108

±RL cycles

Zero load output

±4

% RL

Temperature effect on rated output per °C

±0.005

% AL

Temperature effect on zero load output per °C

±0.005

% RL

Temperature range - Compensated

-10 to +50

°C

Temperature range - Safe

-10 to +80

°C

Excitation voltage - Recommended

10

V

Excitation voltage - Maximum

20

V

Bridge resistance

700

Ω

Insulation resistance - Minimum at 50Vdc

500

Fixing bolt torque (bolt grade 8.8) - 25kN range

25

Nm

- Other ranges

48

Nm

Overload - Safe

50

% RL

Overload - Ultimate

200

% RL

Sealing

IP65

All standard ranges are manufactured in stainless steel.

Geometry: Shear web structure with high vertical and lateral mechanical stiffness.

The F254 is designed for high levels of cyclic loading and is readily adapted to series mechanical connection within actuator rods or pistons by using our ‘in-line’ adapter.

The loadcell has good output symmetry between compression and tension operation. All standard bi-directional loadcells are calibrated in both modes. If you require a recessed boss the F318 pancake loadcell may be more suitable. The F318 has standard ranges from 1 to 500kN.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

Order Codes

Code

Description

F254CFR0K0

Compression, IP65, unrationalised

F254TFR0K0

Tension, IP65, unrationalised

F254UFR0K0

Bi-directional, IP65, unrationalised

F254CFR0KN

Compression, IP65, rationalised

F254TFR0KN

Tension, IP65, rationalised

F254UFR0KN

Bi-directional, IP65, rationalised

Change the F to a P for the connector version.

Structural Stiffness - Nominal

Range (kN)

Stiffness (N/m)

25

1.3 x 109

50

2.6 x 109

100

1.7 x 109

200

3.4 x 109

Notes

  • AL = Applied load.
  • RL = Rated load.
  • AO = Average of tension and compression outputs for full load.
  • Temperature coefficients apply over the compensated range.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 16-2-4C or a 4 pin Binder 723 series chassis plug.

Excitation + = Red or pin 1, Excitation - = Blue or pin 2, Signal + = Yellow or pin 3, Signal - = Green or pin 4, Screen = Orange.

Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.

Files

Type

Title

Download

Outline

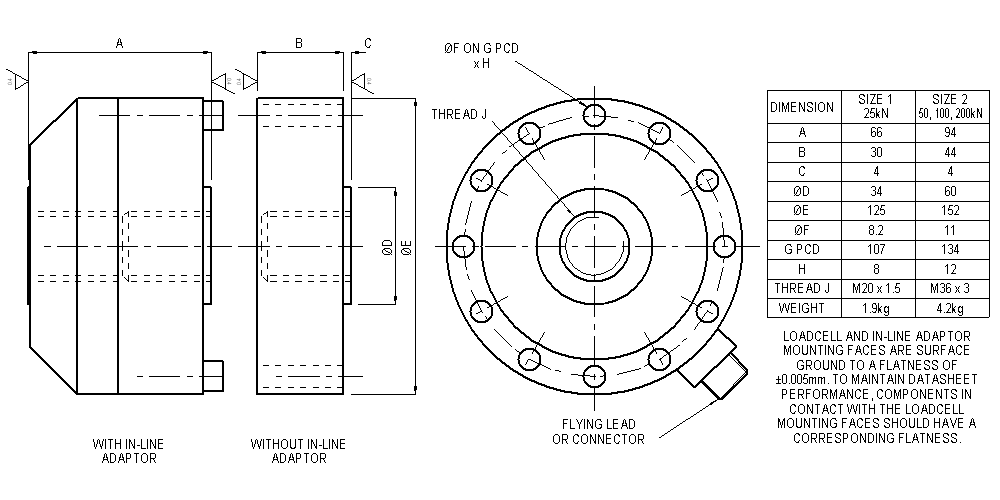

Outline drawing of the product.
