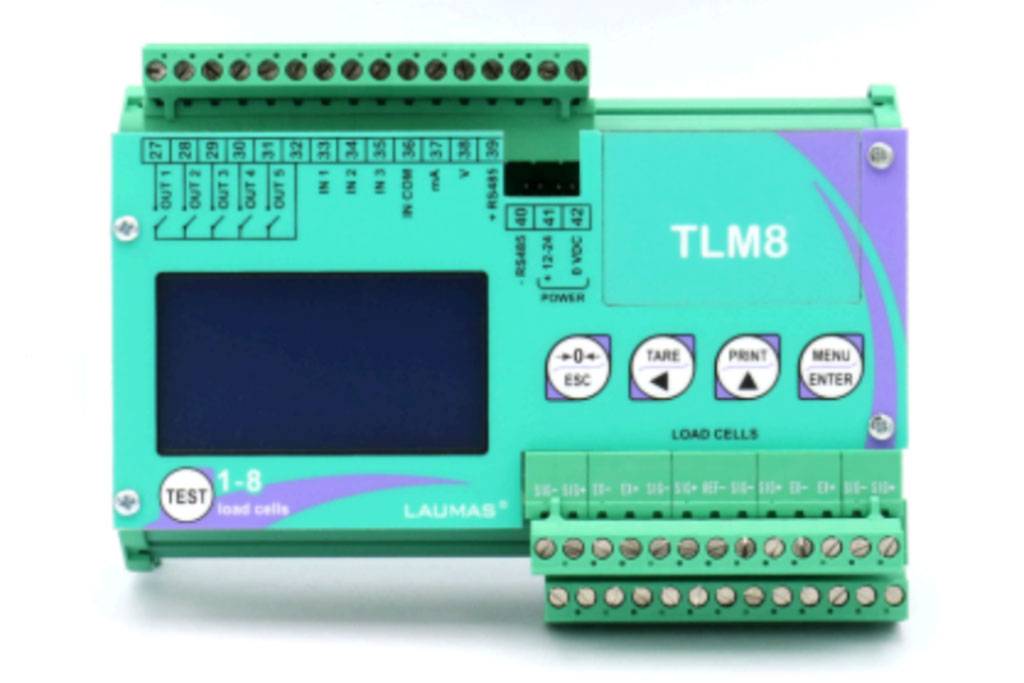

TLM8 Multi-input digital loadmeter
- Multi-input digital loadmeter for DIN rail mounting
- 8 loadcell inputs with digital span equalisation
- 60x32mm display with localised controls for easy setup
- Wide range of communication interface options
- 5 relay outputs for control system integration
Specification
Parameter | Value | Unit |
Supply voltage | 10 to 26 | Vdc |
Supply current | 250 | mA |
Operating temperature | -20 to 60 | °C |
Storage temperature | -30 to +80 | °C |
Dimensions | 148x92x60 | mm |
Display | 60x32mm 128x64pixel 5½ digit LCD | |
Measuring A/D converter | 24 | bit |
Conversion rate | Up to 600 readings | per second |
Thermal stability | 0.0005% full scale | °C |
Non-linearity | 0.01% of full scale | |
Loadcell input | 4 wire and 6 wire with remote sensing | |
Excitation supply | 5 ±0.1 | V |
Bridge resistance range | 350 to 5000 | Ω |
Sensitivity range | 0.5 to 7.0 | mV/V |
Analogue output A/D converter | 16 | bit |
Analogue output non-linearity | 0.01% of full range | |
Analogue output thermal stability | 0.003% full scale | °C |
Analogue output options | 0mA to 20mA, 4mA to 20mA, 0V to 5V, 0V to 10V | |
Maximum current loop resistance | 400 | Ω |
Minimum voltage output load resistance | 2k | Ω |
Digital inputs | 3 optoisolated 5-24Vdc | |
Relay outputs | 5 rated at 115Vac, 150mA | |
Communications | RS485 serial port, ModBus RTU, ASCII |
TLM8 Multi-input digital loadmeter
A compact solution to interfacing multiple parallel connected loadcells for force measurement and weighing applications. The TLM8 has a block of terminals that acts like a junction box to connect up to 8 loadcells in parallel. Additionally the TLM8 allows for span equalisation of the individual loadcell inputs, to correct for any output differential between the loadcells. The TLM8 offers 5 relay outputs to drive trips and alarm indicators, and 3 optoisolated inputs for remote control of the loadmeter. Versions are available with a wide range of communications options for CANopen, DeviceNet, CC-Link, Profibus, Modbus, Ethernet, Profinet, EtherCAT, POWERLINK and SERCOS III.
Basic models:
TLM8 [TLM8 Multi-input digital loadmeter]
