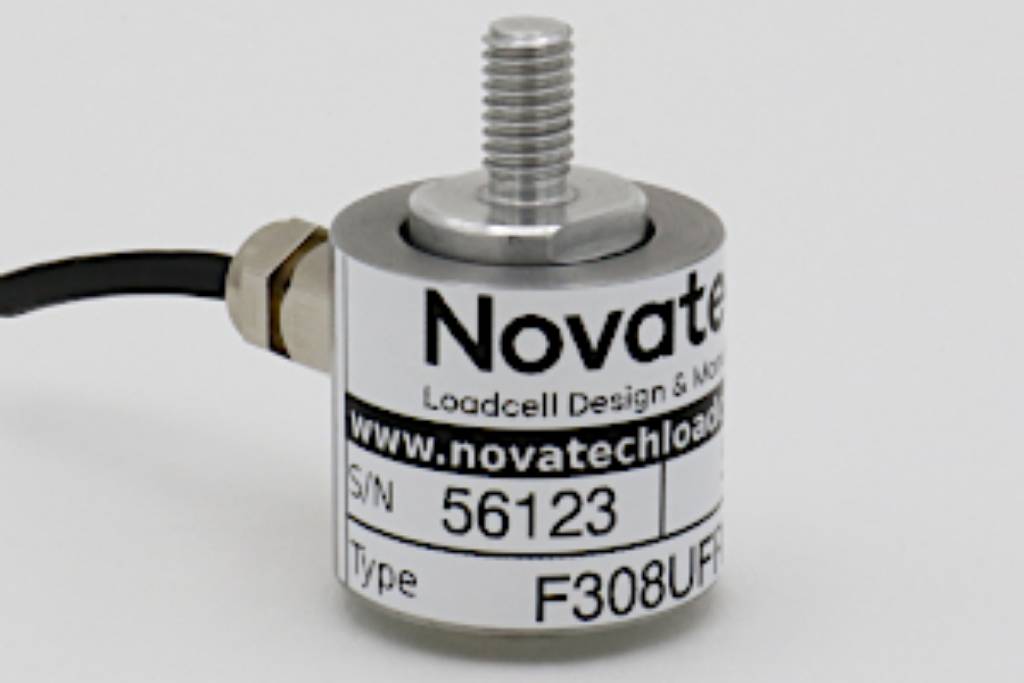

F308 Axial Loadcell

Standard Ranges 50, 100, 200, 500N and 1, 1.5, 2, 2.5kN (5 to 250kgf)

  • Good repeatability
  • Compact axial geometry
  • Space saving male / female fixing
  • Sealed to IP65
  • Traceable calibration with certificate included in the standard price
  • Standard 1 year warranty

Specification

Parameter

Value

Unit

Non-linearity - Terminal

±0.1 (50 to 500N) / ±0.35 (1 to 2.5kN)

% RL

Hysteresis

±0.1 (50 to 500N) / ±0.1 (1 to 2.5kN)

% RL

Creep - 20 minutes

±0.2 (50 to 500N) / ±0.1 (1 to 2.5kN)

% AL

Repeatability

±0.05 (50 to 500N) / ±0.05 (1 to 2.5kN)

% RL

Rated output - Nominal

1.2 (50 to 500N) / 1.2 (1 to 2.5kN)

mV/V

Rated output - Rationalised

1.0 (50 to 500N) / 1.0 (1 to 2.5kN)

mV/V

Rationalisation tolerance (applies to single direction calibrations)

±0.5 (50 to 500N) / ±0.5 (1 to 2.5kN)

% RL

Zero load output

±4 (50 to 500N) / ±4 (1 to 2.5kN)

% RL

Output symmetry

2.0 (50 to 500N) / 2.0 (1 to 2.5kN)

% AO

Temperature effect on rated output per °C

±0.005 (50 to 500N) / ±0.005 (1 to 2.5kN)

% AL

Temperature effect on zero load output per °C

±0.01 (50 to 500N) / ±0.01 (1 to 2.5kN)

% RL

Temperature range - Compensated

-10 to +50 (50 to 500N) / -10 to +50 (1 to 2.5kN)

°C

Temperature range - Safe

-10 to +80 (50 to 500N) / -10 to +80 (1 to 2.5kN)

°C

Excitation voltage - Recommended

10 (50 to 500N) / 10 (1 to 2.5kN)

V

Excitation voltage - Maximum

10 (50 to 500N) / 10 (1 to 2.5kN)

V

Bridge resistance

350 (50 to 500N) / 350 (1 to 2.5kN)

Ω

Insulation resistance - Minimum at 50Vdc

500 (50 to 500N) / 500 (1 to 2.5kN)

Overload - Safe

50 (50 to 500N) / 50 (1 to 2.5kN)

% RL

Overload - Ultimate

200 (50 to 500N) / 200 (1 to 2.5kN)

% RL

Sealing

IP65

Weight - Nominal (excluding cable)

50 (50 to 500N) / 70 (1 to 2.5kN)

g

Ranges up to 200N are manufactured in aluminium; ranges above 200N are manufactured in stainless steel.

The F308 is a compact axial loadcell with improved EFI compared to diaphragm loadcells.

The inert base and top fixings with spanner flats allow ease of installation. The strain geometry possesses a plane with good EFI performance defined as perpendicular to the loading axis and the spanner flats. This is particularly useful when a loadcell is used to support mass with its weight acting perpendicular to the measurement axis.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for higher temperature operation. Ranges from 500N to 2.5kN can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

Order Codes

Code

Description

F308DFR0H0

Compression, IP65, unrationalised

F308TFR0H0

Tension, IP65, unrationalised

F308UFR0H0

Bi-directional, IP65, unrationalised

F308DFR0HN

Compression, IP65, rationalised

F308TFR0HN

Tension, IP65, rationalised

F308UFR0HN

Bi-directional, IP65, rationalised

Structural Stiffness - Nominal

Range (kN)

Stiffness (N/m)

50 (N)

1.4 x 106

100 (N)

3.8 x 106

200 (N)

1.1 x 107

500 (N)

2.5 x 107

1 to 2.5

1.1 x 108

Notes

  • AL = Applied load.
  • RL = Rated load.
  • AO = Average of tension and compression outputs for full load.
  • Temperature coefficients apply over the compensated range.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-1-4C.

Excitation + = Red, Excitation - = Blue, Signal + = Yellow, Signal - = Green, Screen = Orange.

Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.

When this loadcell is rationalised the resistors are housed in a capsule located in the loadcell cable 100mm from the free end. Capsule dimensions are Ø10mm by 57mm.

Files

Type

Title

Download

Outline

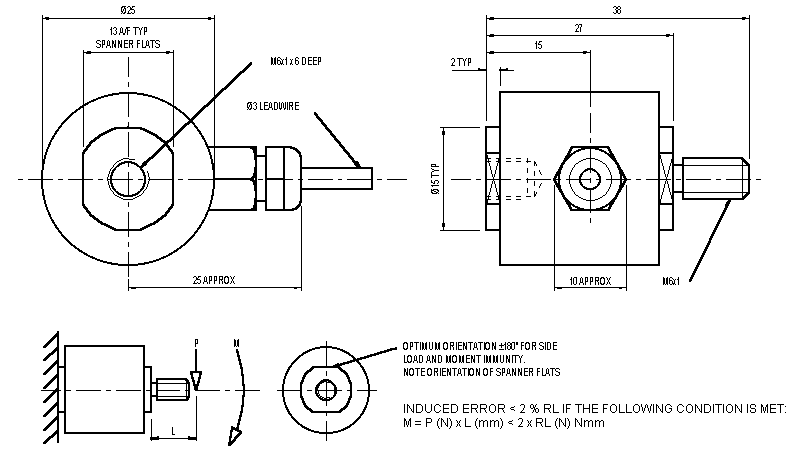

Outline drawing of the product.

Download

STEP File

F308-T/D/U-FR0H0 All standard ranges

Download
