F303 Low Cost Axial Force Sensor

Standard Ranges 20 and 40kN (2 and 4tonnef)
  • Low profile
  • Sealed to IP65
  • Low cost
  • Hardened stainless steel
  • Standard 1 year warranty
OPT_f303_loadcell
Download PDF

Enquire about F303 Low Cost Axial Force Sensor

The F303 is aimed at the volume OEM user who requires a reliable high quality axial sensor at a low price for low accuracy compressive force measurement in equipment.

It is manufactured from stainless steel and sealed to IP65 for long life in typical industrial operating conditions. The sensor is designed for simple mounting on a smooth flat surface.

Each sensor is labelled with its output for full range. A calibration certificate is not supplied as standard.

We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.

Specification

ParameterValueUnit
Non-linearity - Terminal±2.0% RL
Hysteresis±2.0% RL
Creep - 20 minutes±0.1% AL
Repeatability±0.1% RL
Rated output - Nominal2 ±20%mV/V
Rated output - Rationalised2.0mV/V
Rationalisation tolerance±1% RL
Zero load output±6% RL
Temperature effect on rated output per °C±0.04% AL
Temperature effect on zero load output per °C±0.05% RL
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum10V
Bridge resistance350Ω
Insulation resistance - Minimum at 50Vdc500MΩ
Overload - Safe50% RL
Overload - Ultimate200% RL
SealingIP65
Weight - Nominal (excluding cable)120g

Order Codes

CodeDescription
F303CFROHOCompression, IP65, unrationalised
F303CFROHNCompression, IP65, rationalised

Structural Stiffness

Range (kN)Stiffness (N/m)
209.9 x 108
402.1 x 1010

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.
  • The load must be applied directly through the central loading axis.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C.

Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.

The screen is not connected to the loadcell body.

When this loadcell is rationalised the resistors are housed in a capsule located in the loadcell cable 100mm from the free end. Capsule dimensions are Ø10mm by 57mm.

Files

TitleTypeFile

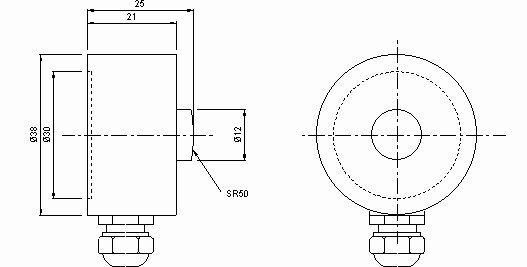

Outline drawing of the product.Outline Download
F303CFR0H0 All standard rangesSTEP File Download
