F337 Miniature Axial Compensated Load Cell

Standard Ranges Aluminium – 20kg, 40kg Stainless Steel – 80kg, 125kg, 250kg

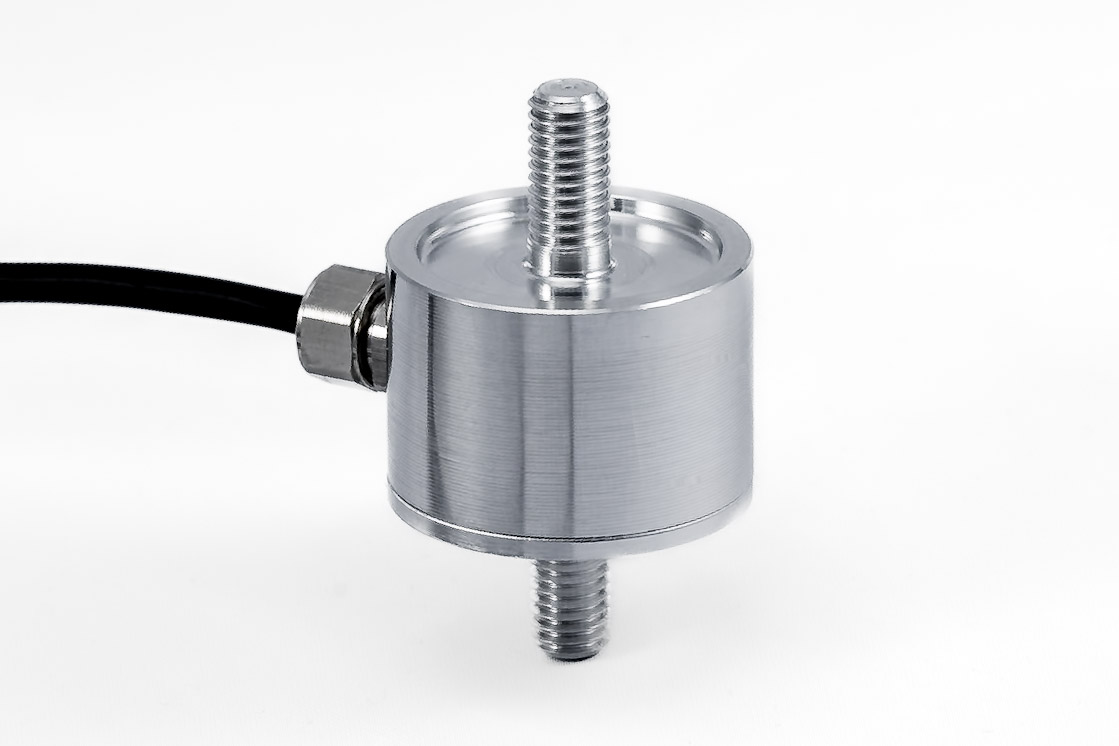

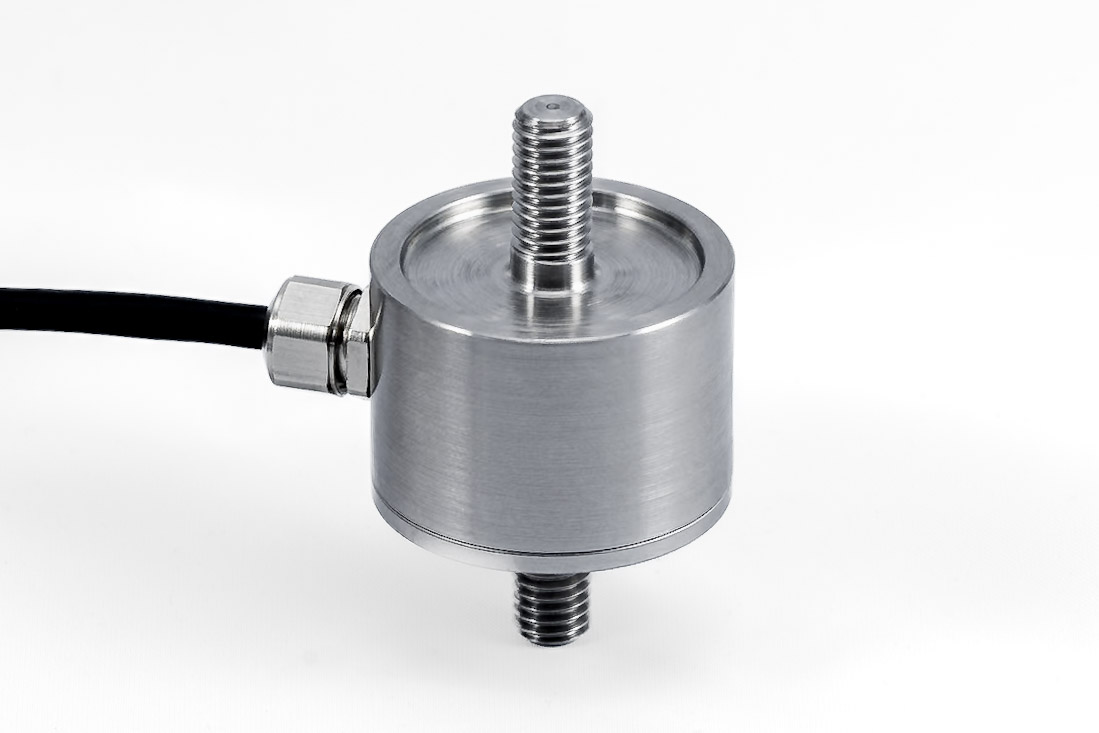

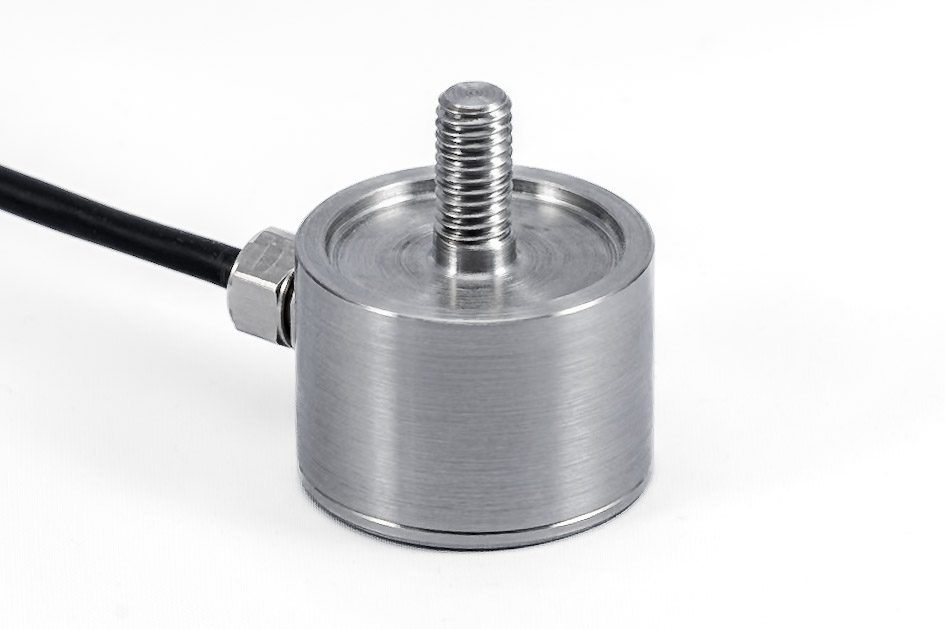

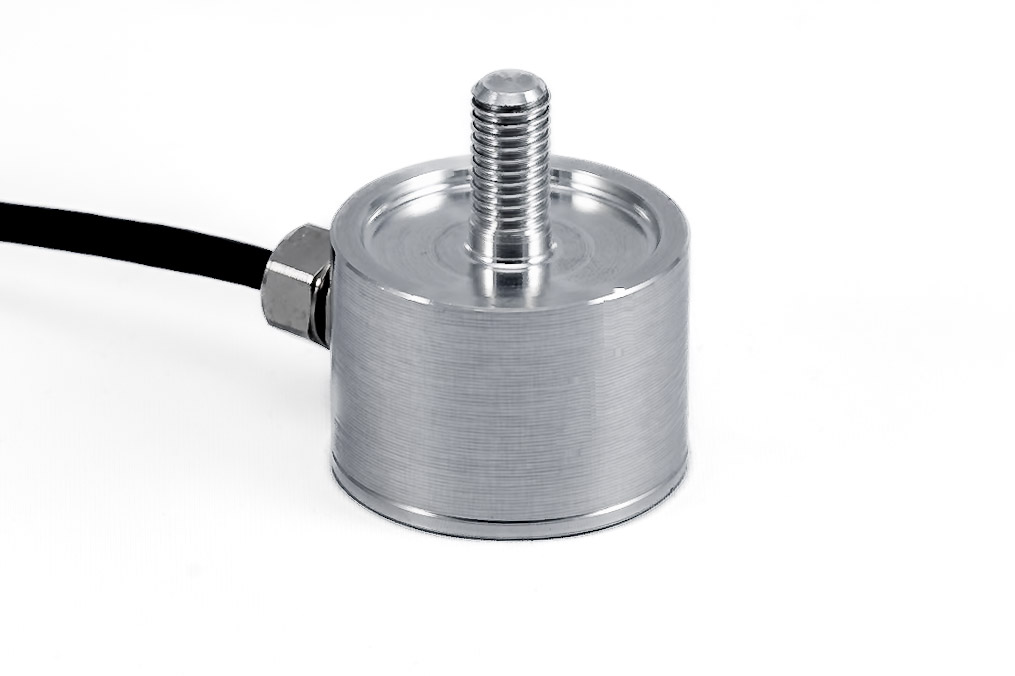

Studio Session-655
Studio Session-656
Studio Session-657
Studio Session-658
Download PDF

Enquire about F337 Miniature Axial Compensated Load Cell

Beam and diaphragm combination. Tension, compression and bi-directional options are available. All standard bi-directional load cells are calibrated in both modes.

The load cell’s small size of Ø35mm with an overall height of 52mm makes it ideal for applications where the space envelope is limited.

The options of male/female threaded or flat bases enables the load cell to be utilised in a wide variety of mechanical assemblies. Special bases with your required threads/fasteners are available upon request.

The load cell’s unique strain system compensates for typical force misalignment in force measurement rigs and industrial weighing systems.

The standard versions are all sealed to IP65 with IP67 available as an option.

For integral amplifiers see Engineering Application Sheet E032 and the ICA6H data-sheet for more information.

This load cell can be manufactured for fully compensated operation up to +250°C and/or ultra-high vacuum environments upon request.

Your specific constraints can be discussed with our engineering department to develop a bespoke load cell to suit your needs.

Specification

ParameterValueUnit
Non-linearity – Terminal0.1%RL
Hysteresis0.05%RL
Creep – 20 minutes0.1%AL
Repeatability0.05%RL
Rated output – Nominal1.2mV/V
Rated output – Rationalised1mV/V
Rationalisation Tolerance0.5%RL
Output symmetry0.5%AO
Zero load output±4%RL
Temperature effect on rated output per °C0.005%AL
Temperature effect on zero load output per °C0.01%RL
Temperature range – Compensated-10 to +50°C
Temperature range – Safe-10 to +80°C
Excitation voltage – Recommended10V
Excitation voltage – Maximum20V
Bridge Resistance700Ω
Insulation resistance – Minimum at 50Vdc500MΩ
Overload – Safe100%RL
Overload – Ultimate200%RL
SealingIP65-
Weight – Nominal (excluding cable)kg

Order Codes

CodeDescription
F337CFR0KNCompression, flat base, IP65
F337DFR0KNCompression, thread fitting, IP65
F337TFR0KNTension, thread fitting, IP65
F337UFR0KNBi-directional, thread fitting, IP65
F337AFR0KNCompression, female base, IP65
F337GFR0KNTension, female base, IP65
F337JFR0KNBi-directional, female base, IP65

Structural Stiffness

Range (kN)Stiffness (N/m)
206.7x106
401.3x107
803.1x107
1254.6x107
2508.6x107

Connections

The load cell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C. Special cable lengths/type or chassis plug available upon request.

Excitation + = Red or pin 1, Excitation – = Blue or pin 2, Signal + = Yellow or pin 3, Signal – = Green or pin 4, Screen = Orange.

Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.
