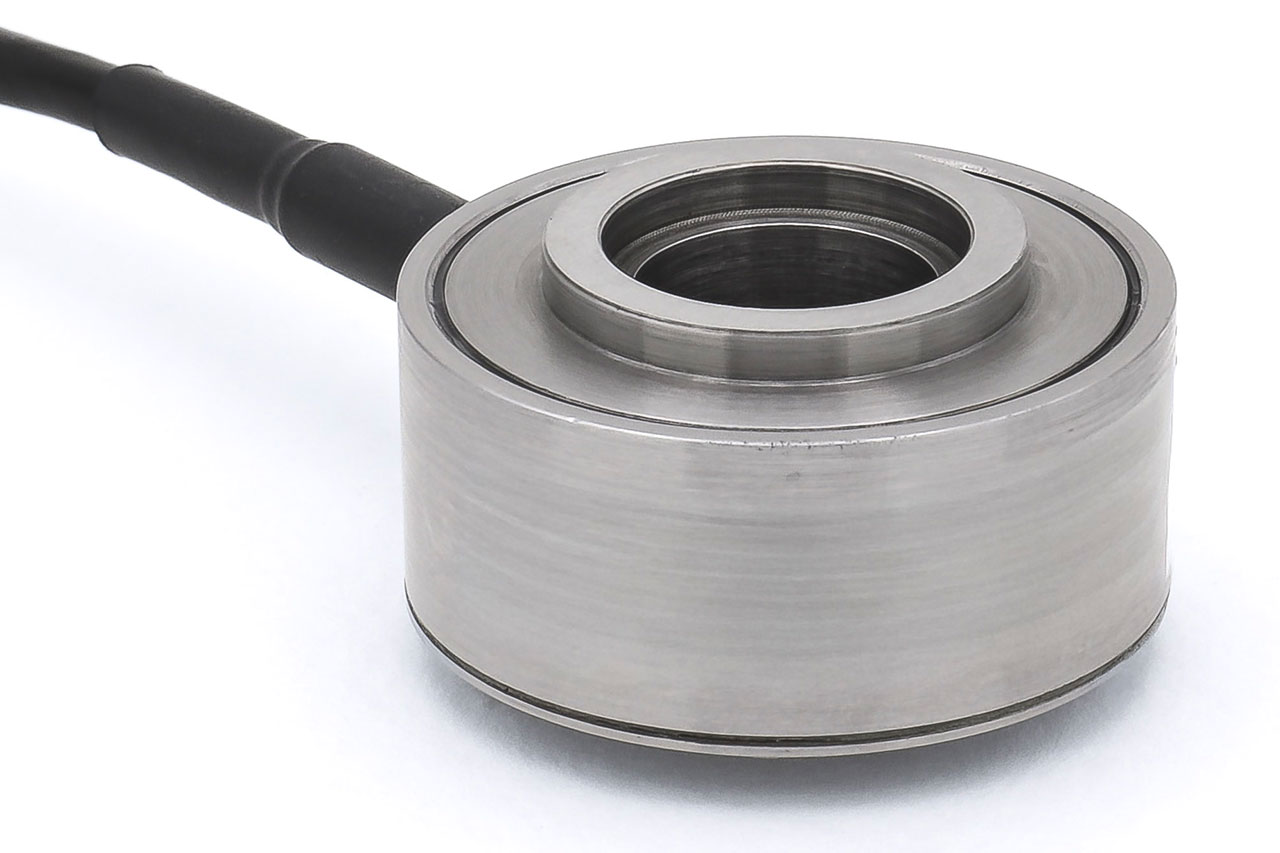

The F313 is ideally suited to engineering force measurements.
It is designed for easy installation, usually between two flat faces bearing on its loading rings, either unattached or with retaining spigots positioned in the centre hole. Alternatively tensile load transfer can be achieved via a tie rod assembly through the centre hole. In this way the loadcell can indirectly measure tensile loads in a “fail-safe” mode.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
The F313 is ideally suited to engineering force measurements.
It is designed for easy installation, usually between two flat faces bearing on its loading rings, either unattached or with retaining spigots positioned in the centre hole. Alternatively tensile load transfer can be achieved via a tie rod assembly through the centre hole. In this way the loadcell can indirectly measure tensile loads in a “fail-safe” mode.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
Parameter | Value | Unit |
---|---|---|
Non-linearity - Terminal | ±0.5 (10kN) / ±0.5 (20 to 200kN) | % RL |
Hysteresis | ±0.5 (10kN) / ±0.5 (20 to 200kN) | % RL |
Creep - 20 minutes | ±0.1 (10kN) / ±0.1 (20 to 200kN) | % AL |
Repeatability (excluding rotational effects) | ±0.1 (10kN) / ±0.1 (20 to 200kN) | % RL |
Rated output - Nominal | 1.3 (10kN) / 1.3 (20 to 200kN) | mV/V |
Rated output - Rationalised | 1.0 (10kN) / 1.0 (20 to 200kN) | mV/V |
Rationalisation tolerance | ±0.5 (10kN) / ±0.5 (20 to 200kN) | % RL |
Zero load output | ±4 (10kN) / ±4 (20 to 200kN) | % RL |
Temperature effect on rated output per °C | ±0.005 (10kN) / ±0.005 (20 to 200kN) | % AL |
Temperature effect on zero load output per °C | ±0.03 (10kN) / ±0.03 (20 to 200kN) | % RL |
Temperature range - Compensated | -10 to +50 (10kN) / -10 to +50 (20 to 200kN) | °C |
Temperature range - Safe | -10 to +80 (10kN) / -10 to +80 (20 to 200kN) | °C |
Excitation voltage - Recommended | 10 (10kN) / 10 (20 to 200kN) | V |
Excitation voltage - Maximum | 10 (10kN) / 20 (20 to 200kN) | V |
Bridge resistance | 350 (10kN) / 700 (20 to 200kN) | Ω |
Insulation resistance - Minimum at 50Vdc | 500 (10kN) / 500 (20 to 200kN) | MΩ |
Overload - Safe | 50 (10kN) / 50 (20 to 200kN) | % RL |
Overload - Ultimate | 400 (10kN) / 400 (20 to 200kN) | % RL |
Sealing | IP65 | |
Weight - Nominal (excluding cable) | 15 (10kN) / 20-260 (20 to 200kN) | g |
Code | Description |
---|---|
F313CFR0K0 | Compression, IP65, unrationalised |
F313CFR0KN | Compression, IP65, rationalised |
Change the K to an H for the 1 tonnef range. |
Range (kN) | Stiffness (N/m) |
---|---|
10 | 1.1 x 109 |
20 | 2.2 x 109 |
40 | 4.4 x 109 |
80 | 8.8 x 109 |
100 | 7.7 x 109 |
120 | 7.1 x 109 |
160 | 8.0 x 109 |
200 | 1.0 x 1010 |
Title | Type | File |
---|---|---|

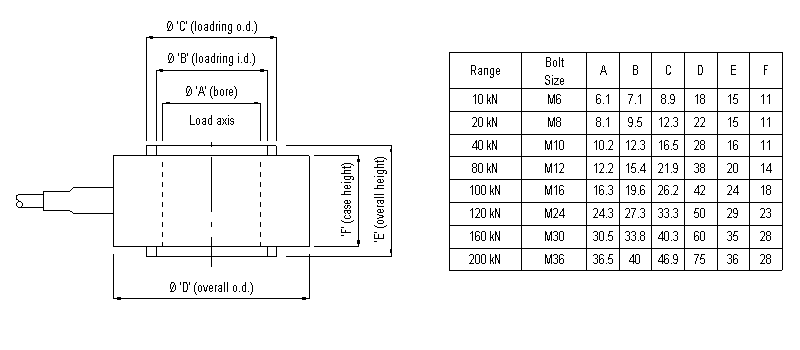

Outline drawing of the product. | Outline | Download |
F313CFR0K0 10kN (1tonnef) | STEP File | Download |
F313CFR0K0 20kN (2tonnef) | STEP File | Download |
F313CFR0K0 40kN (4tonnef) | STEP File | Download |
F313CFR0K0 80kN (8tonnef) | STEP File | Download |
F313CFR0K0 100kN (10tonnef) | STEP File | Download |
F313CFR0K0 120kN (12tonnef) | STEP File | Download |
F313CFR0K0 160kN (16tonnef) | STEP File | Download |
F313CFR0K0 200kN (20tonnef) | STEP File | Download |
