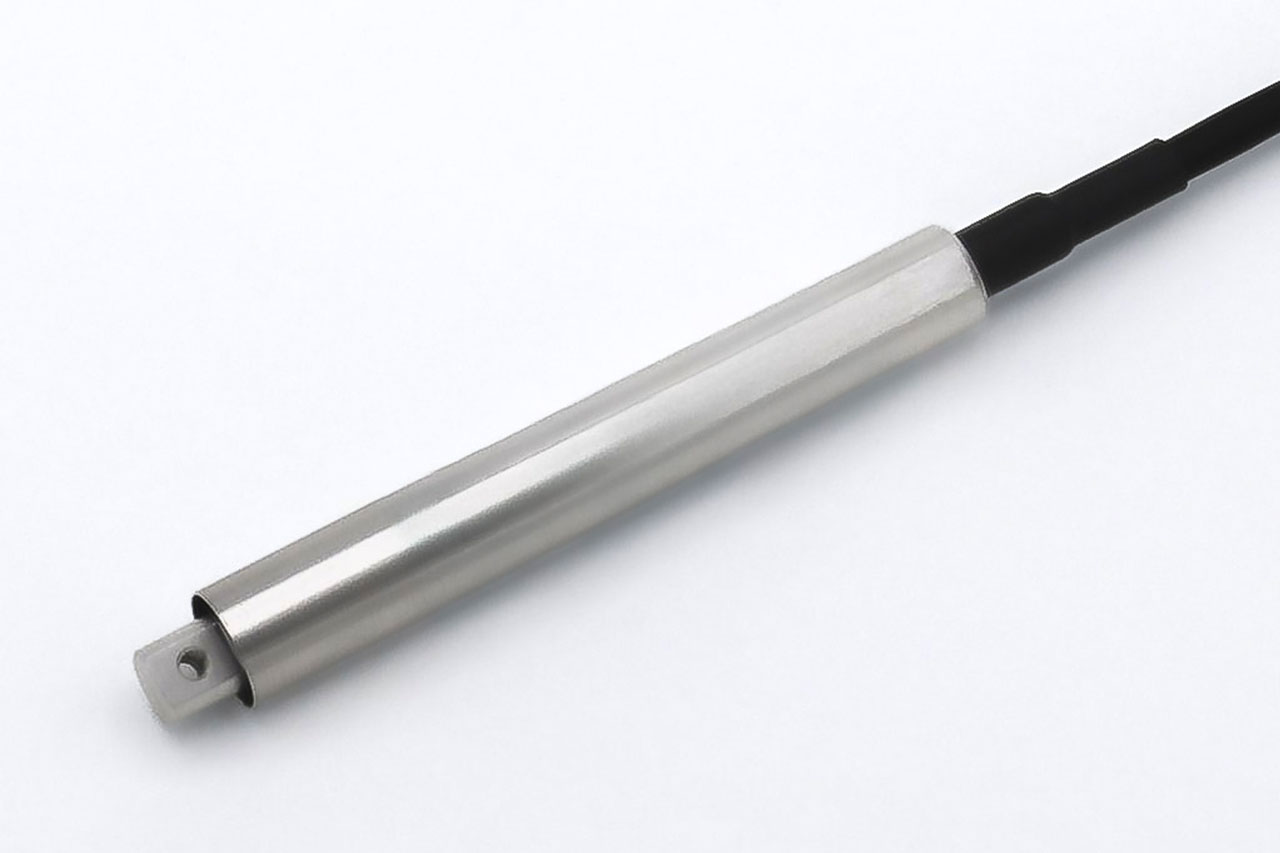

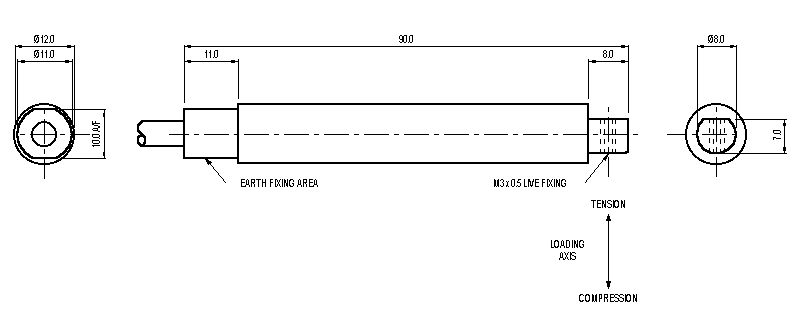

The loadcell has integral overload stops to protect against overloading in the vertical axis. Torsional loads about the longitudinal axis may damage the loadcell.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for higher temperature operation. Please consult our engineering department.
The loadcell has integral overload stops to protect against overloading in the vertical axis. Torsional loads about the longitudinal axis may damage the loadcell.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for higher temperature operation. Please consult our engineering department.
Parameter | Value | Unit |
---|---|---|
Non-linearity - Terminal | ±0.1 | % RL |
Hysteresis | ±0.1 | % RL |
Creep - 20 minutes | ±0.05 | % AL |
Repeatability | ±0.03 | % RL |
Rated output - Nominal | 1.0 | mV/V |
Rated output - Rationalised | 0.8 | mV/V |
Rationalisation tolerance (applies to single direction calibrations) | 0.5 | % RL |
Zero load output | ±8 | % RL |
Temperature effect on rated output per °C | ±0.005 | % AL |
Temperature effect on zero load output per °C | ±0.01 | % RL |
Temperature range - Compensated | -10 to +50 | °C |
Temperature range - Safe | -10 to +80 | °C |
Excitation voltage - Recommended | 10 | V |
Excitation voltage - Maximum | 10 | V |
Bridge resistance | 350 | Ω |
Insulation resistance - Minimum at 50Vdc | 500 | MΩ |
Overload - Safe | 20 | % RL |
Overload - Ultimate | 100 | % RL |
Weight - Nominal (excluding cable) | 18 to 20 | g |
Code | Description |
---|---|
F301CF00H0 | Compression, unrationalised |
F301TF00H0 | Tension, unrationalised |
F301UF00H0 | Bi-directional, unrationalised |
F301CF00HN | Compression, rationalised |
F301TF00HN | Tension, rationalised |
F301UF00HN | Bi-directional, rationalised |
Range (kN) | Stiffness (N/m) |
---|---|
1 | 1.2 x 103 |
3 | 3.6 x 103 |
