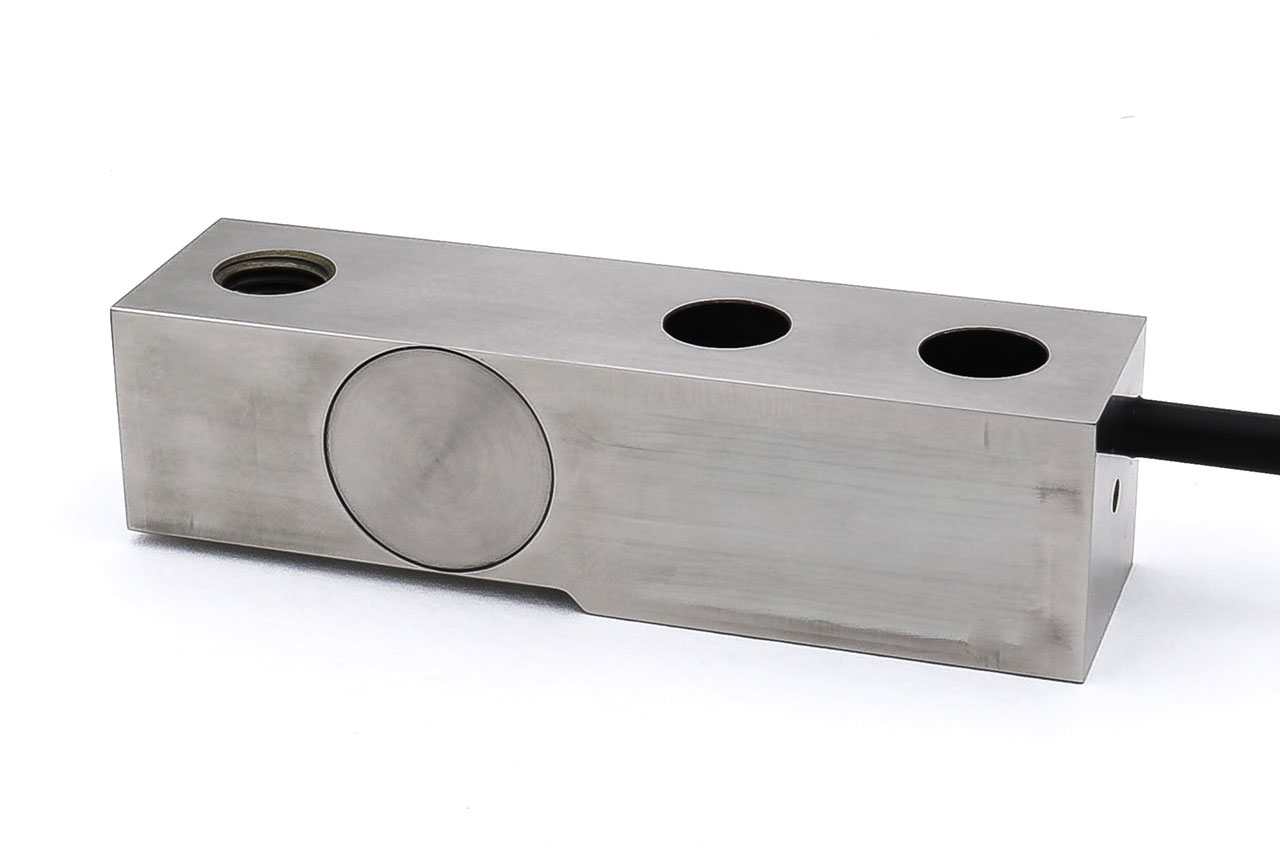

F268 Shear Beam Loadcell

Standard Ranges 5, 10, 20, 40, 80, 120 and 160kN (0.5 to 16tonnef)
Geometry: Shear strain beam for use in all process weighing applications and also engineering force measurement in compression or tension.

The F268 is ideally suited to process weighing applications which have harsh environmental requirements. The design configuration allows it to be used for installations for tank, hopper, weigh platforms or weigh bridges.

We are happy to design shear or bending beams to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

The F268 is ideally suited to process weighing applications which have harsh environmental requirements. The design configuration allows it to be used for installations for tank, hopper, weigh platforms or weigh bridges.

We are happy to design shear or bending beams to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

Specification

ParameterValueUnit
Non-linearity - Terminal±0.1% RL
Hysteresis±0.1% RL
Creep - 20 minutes±0.05% AL
Repeatability±0.02% RL
Rated output - Rationalised2.0mV/V
Rationalisation tolerance (applies to single direction calibrations)±0.1% RL
Zero load output±4% RL
Temperature effect on rated output per °C±0.002% AL
Temperature effect on zero load output per °C±0.005% RL
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum10V
Bridge resistance350
Insulation resistance - Minimum at 50Vdc500MΩ
Overload - Safe50% RL
Overload - Ultimate100% RL
SealingIP65

Order Codes

CodeDescription
F268CFR0HNCompression, IP65, rationalised
F268UFR0HNBi-directional, IP65, rationalised
F268TFR0HNTension, IP65, rationalised

Structural Stiffness

Range (kN)Stiffness (N/m)
51.3 x 108
102.0 x 108
203.3 x 108
406.6 x 108
808.5 x 108
1201.3 x 109
1601.7 x 109

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.

Connections

For ranges up to 4tonnef the loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C. Ranges above 4 tonnefs are fitted with 16-2-4C cable.

Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.

Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.

Files

TitleTypeFile

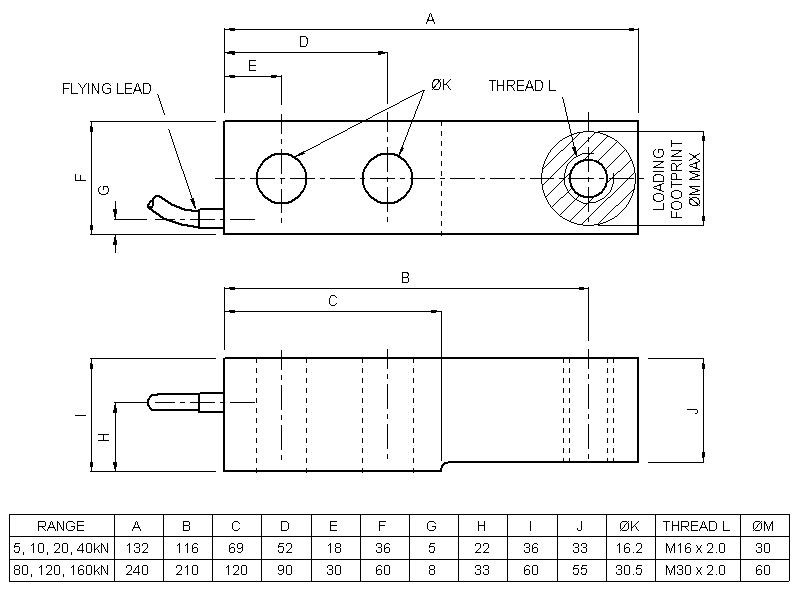

Outline drawing of the product.Outline Download
F268-T/C/U-FR0HN 5 to 40kN (500kg to 4tonne)STEP File Download
F268-T/C/U-FR0HN 80 to 160kN (8 to 16tonne)STEP File Download
