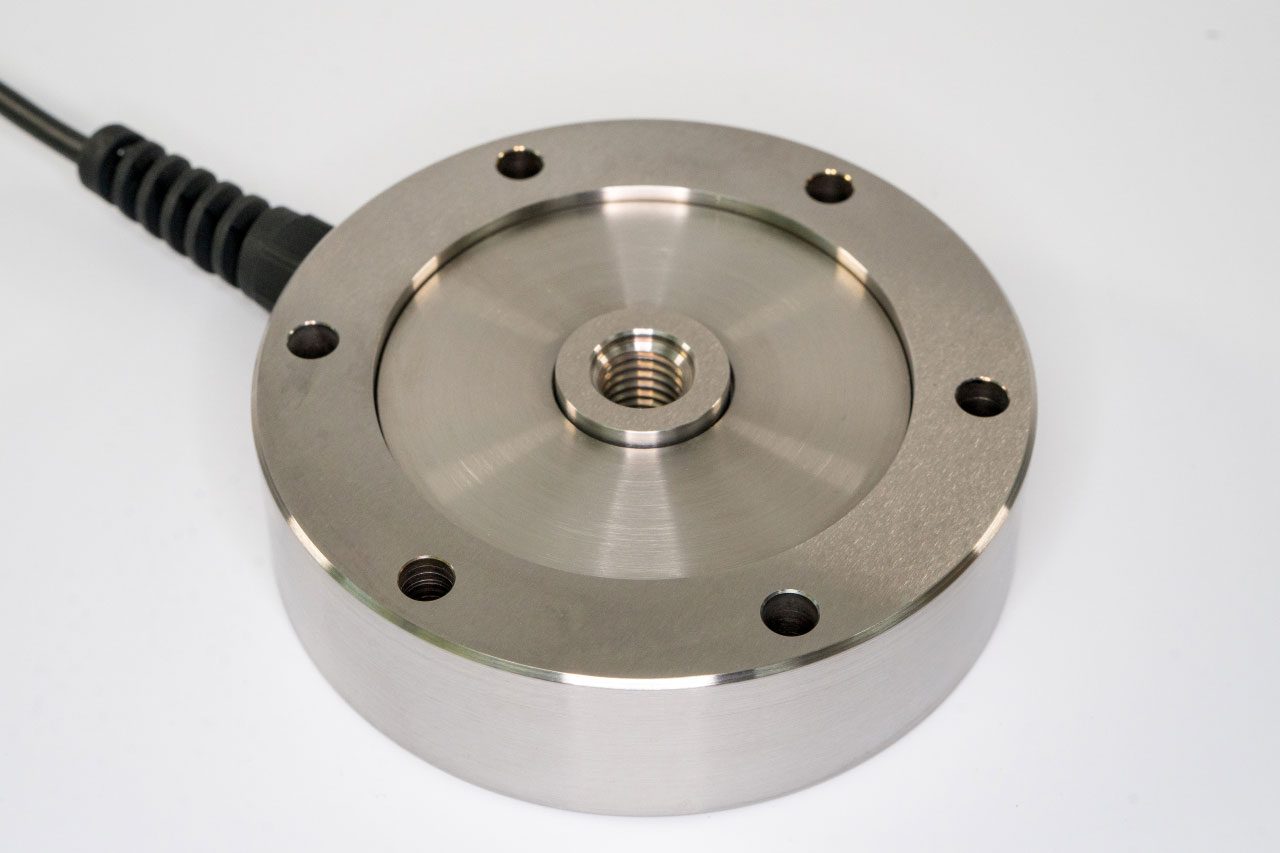

F252 Pancake Loadcell

Standard Ranges 1, 2, 4, 8 and 10kN (100kgf to 1tonnef)
  • Tension / compression / bi-directional calibration
  • Compact size
  • Low deflection
  • Hardened stainless steel body
  • Traceable calibration with certificate included in the standard price
  • Standard 1 year warranty
f252
Download PDF
Geometry: Low profile axial loadcell for use in force measurements in tension and compression.

With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.

The F252 is ideal for engineering force measurements particularly in applications where there is a limit on the height of the loadcell. It can be used for test machines and a wide range of general industrial applications.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.

The F252 is ideal for engineering force measurements particularly in applications where there is a limit on the height of the loadcell. It can be used for test machines and a wide range of general industrial applications.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

Make an enquiry

Specification

ParameterValueUnit
Non-linearity - Terminal±0.1% RL
Hysteresis±0.1% RL
Creep - 20 minutes±0.05% AL
Repeatability±0.02% RL
Rated output - Nominal1.6mV/V
Rated output - Rationalised1.5mV/V
Rationalisation tolerance (applies to single direction calibrations)±0.5% RL
Zero load output±4% RL
Temperature effect on rated output per °C±0.005% AL
Temperature effect on zero load output per °C±0.02% RL
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum20V
Bridge resistance up to 400kgf350Ω
above 400kgf700Ω
Insulation resistance - Minimum at 50Vdc500MΩ
Overload - Safe50% RL
Overload - Ultimate100% RL
Weight - Nominal (excluding cable)840 to 940g

Order Codes

CodeDescription
F252CF00K0Compression, unrationalised
F252TF00K0Tension, unrationalised
F252UF00K0Bi-directional, unrationalised
F252CF00KNCompression, rationalised
F252TF00KNTension, rationalised
F252UF00KNBi-directional, rationalised

Structural Stiffness

Range (kN)Stiffness (N/m)
13.0 x 106
26.0 x 106
41.2 x 107
82.4 x 107
103.0 x 107

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.
  • The load must be applied directly through the central loading axis.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C.

Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.

Reverse the signal connections to obtain a positive signal in tension mode. The screen is not connected to the loadcell body.

Files

TitleTypeFile

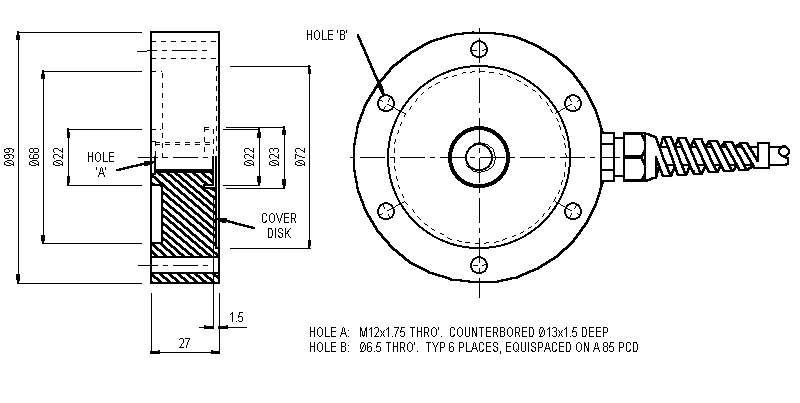

Outline drawing of the product.Outline Download
F252-C/T/U-F00H0 All standard rangesSTEP File Download
