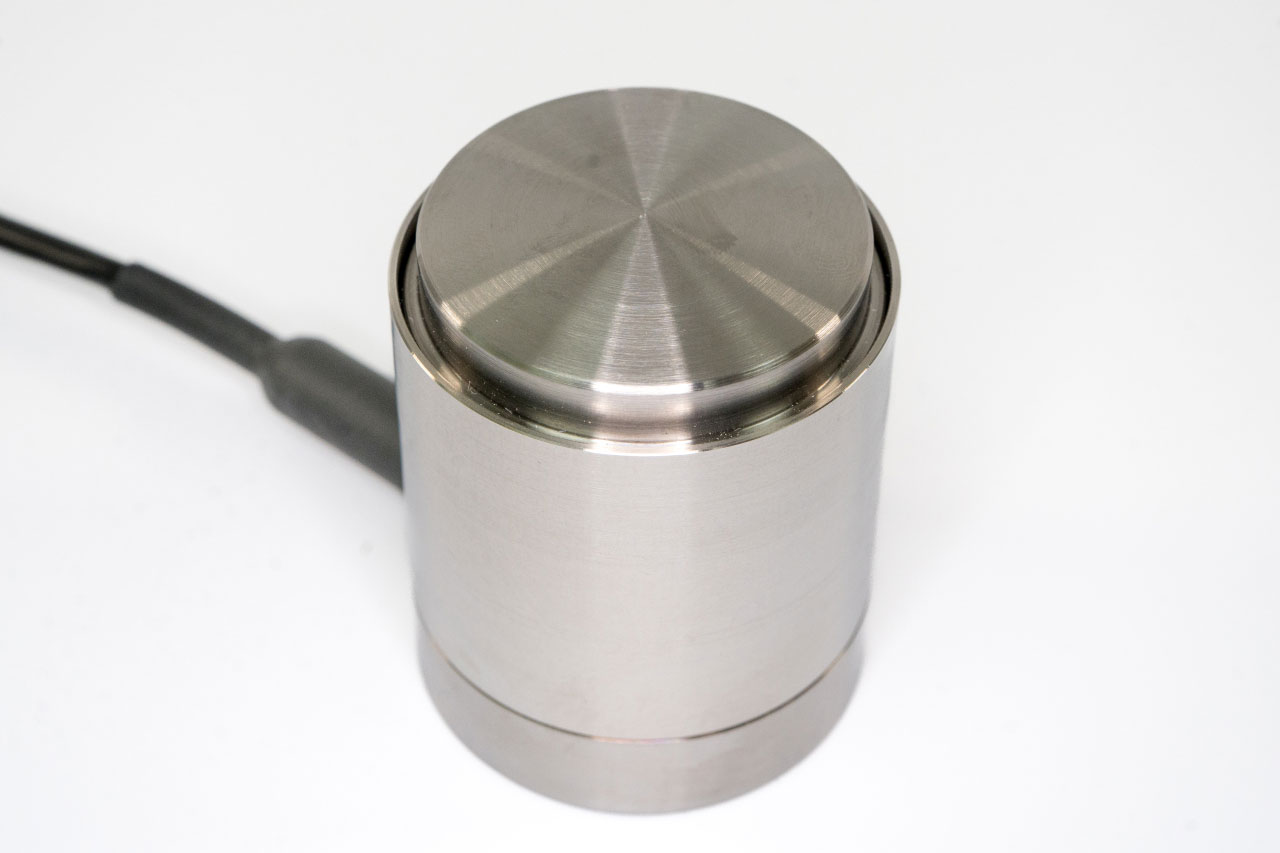

F218 Column Loadcell

Geometry: Small column in a sealed case, with a domed top load bearing face. For use in compression.

The F218 is ideally suited to engineering force measurements. Its high structural load capacity and the frequency response characteristic of this principle of strain sensing make this loadcell ideal for non-sacrificial impact load measurements.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

The F218 is ideally suited to engineering force measurements. Its high structural load capacity and the frequency response characteristic of this principle of strain sensing make this loadcell ideal for non-sacrificial impact load measurements.

We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.

Specification

ParameterValueUnit
Non-linearity - Terminal±0.5% RL
Hysteresis±0.5% RL
Creep - 20 minutes±0.05% AL
Repeatability±0.02% RL
Rated output - Nominal2.3mV/V
Rated output - Rationalised2.0mV/V
Rationalisation tolerance±0.5% RL
Zero load output±4% RL
Temperature effect on rated output per °C±0.005% AL
Temperature effect on zero load output per °C±0.005% RL
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum20V
Bridge resistance700
Insulation resistance - Minimum at 50Vdc500MΩ
Overload - Safe50% RL
Overload - Ultimate300% RL
SealingIP65
Weight - Nominal (excluding cable)0.75 to 1kg

Order Codes

CodeDescription
F218CFR0K0Compression, IP65, unrationalised
F218CFR0KNCompression, IP65, rationalised
If a non-standard cable length is required add this to the description and change the F to B. If bottom cable entry is required add this to the description and

Structural Stiffness

Range (kN)Stiffness (N/m)
1001.7 x 109
2003.4 x 109
4006.8 x 109

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.
  • The load must be applied directly through the central loading axis.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C.

Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.

The screen is not connected to the loadcell body.

Files

TitleTypeFile

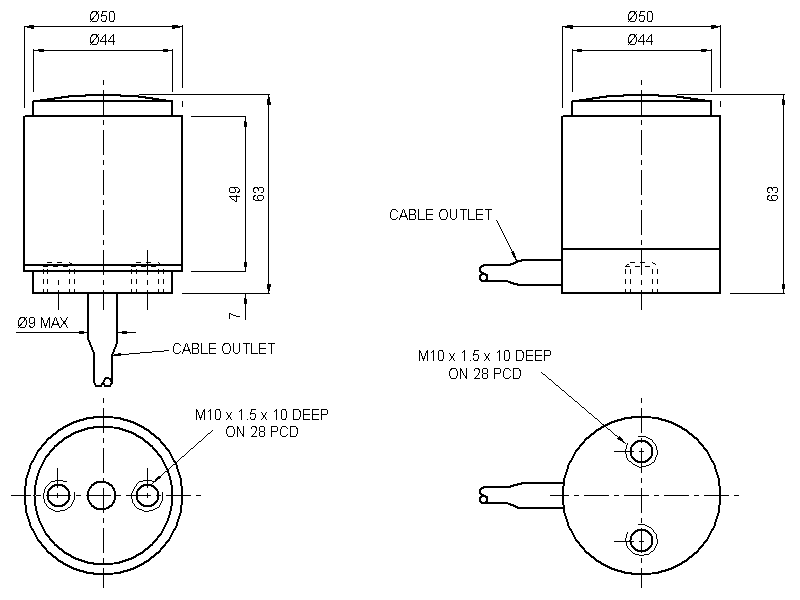

Outline drawing of the product.Outline Download
F218CBR0K0 All standard ranges, axial cableSTEP File Download
F218CFR0K0 All standard ranges, radial cableSTEP File Download
