With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.

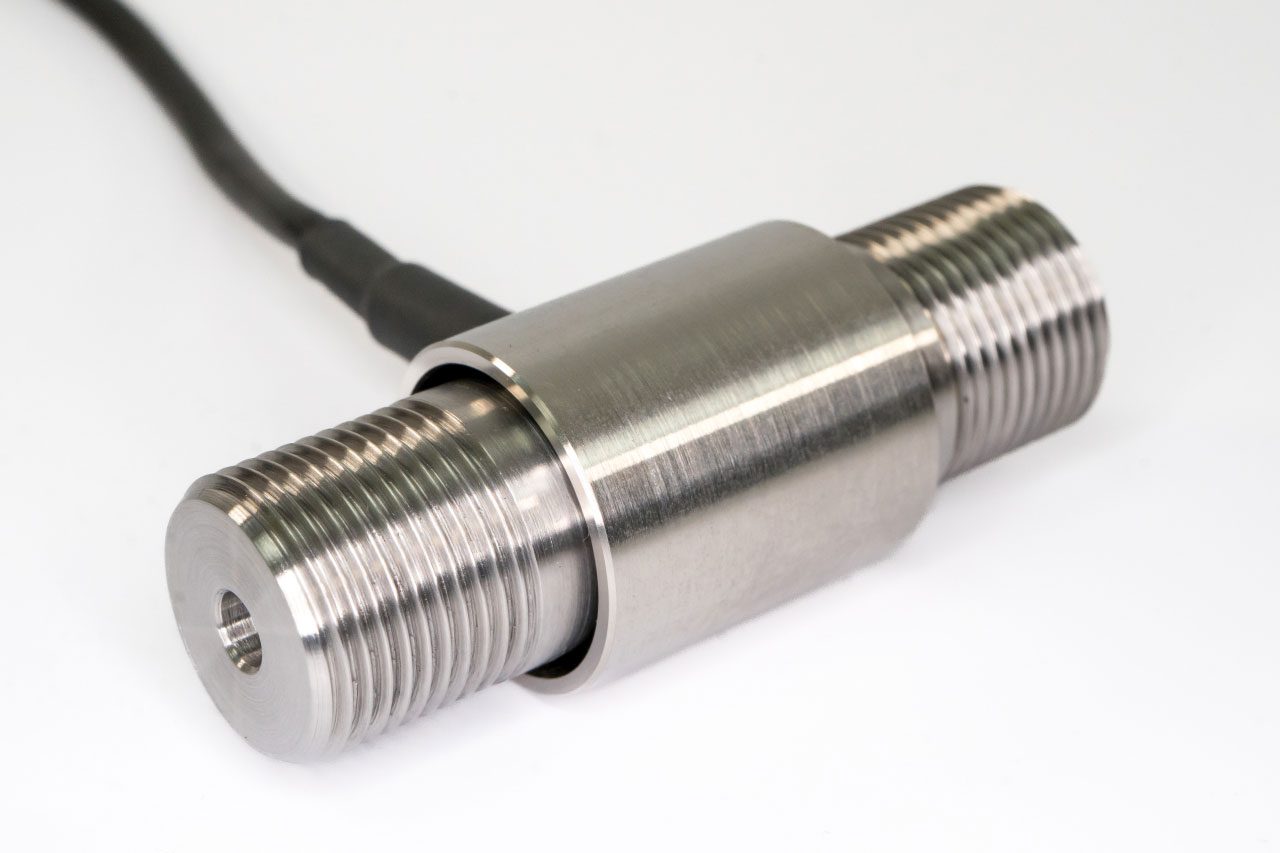

The F214 is ideally suited to engineering force measurements, particularly with push pull actuator / linkage arrangements where self alignment and axial force transmission is achieved by hardware design.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.
The F214 is ideally suited to engineering force measurements, particularly with push pull actuator / linkage arrangements where self alignment and axial force transmission is achieved by hardware design.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for fully compensated operation up to +250°C. Please consult our engineering department.
Parameter | Value | Unit |
---|---|---|
Non-linearity - Terminal | ±0.1 | % RL |
Hysteresis | ±0.1 | % RL |
Creep - 20 minutes | ±0.05 | % AL |
Repeatability | ±0.02 | % RL |
Rated output - Nominal | 1.2 | mV/V |
Rated output - Rationalised | 1.0 | mV/V |
Rationalisation tolerance (applies to single direction calibrations) | ±0.5 | % RL |
Zero load output | ±4 | % RL |
Temperature effect on rated output per °C | ±0.005 | % AL |
Temperature effect on zero load output per °C | ±0.03 | % RL |
Temperature range - Compensated | -10 to +50 | °C |
Temperature range - Safe | -10 to +80 | °C |
Excitation voltage - Recommended | 10 | V |
Excitation voltage - Maximum | 10 | V |
Bridge resistance | 350 | Ω |
Insulation resistance - Minimum at 50Vdc | 500 | MΩ |
Overload - Safe | 50 | % RL |
Overload - Ultimate | 200 | % RL |
Sealing | IP65 | |
Weight - Nominal (excluding cable) | 140 to 200 | g |
Code | Description |
---|---|
F214CFR0H0 | Compression, IP65, unrationalised |
F214TFR0H0 | Tension, IP65, unrationalised |
F214UFR0H0 | Bi-directional, IP65, unrationalised |
F214CFR0HN | Compression, IP65, rationalised |
F214TFR0HN | Tension, IP65, rationalised |
F214UFR0HN | Bi-directional, IP65, rationalised |

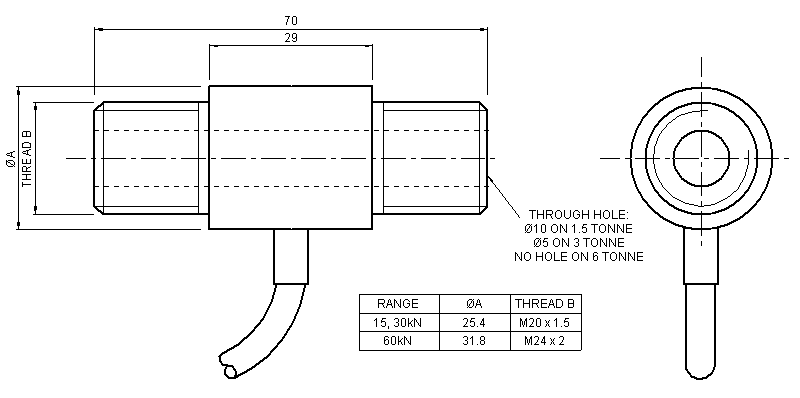

Range (kN) | Stiffness (N/m) |
---|---|
15 | 9.5 x 108 |
30 | 1.9 x 109 |
60 | 3.8 x 109 |
