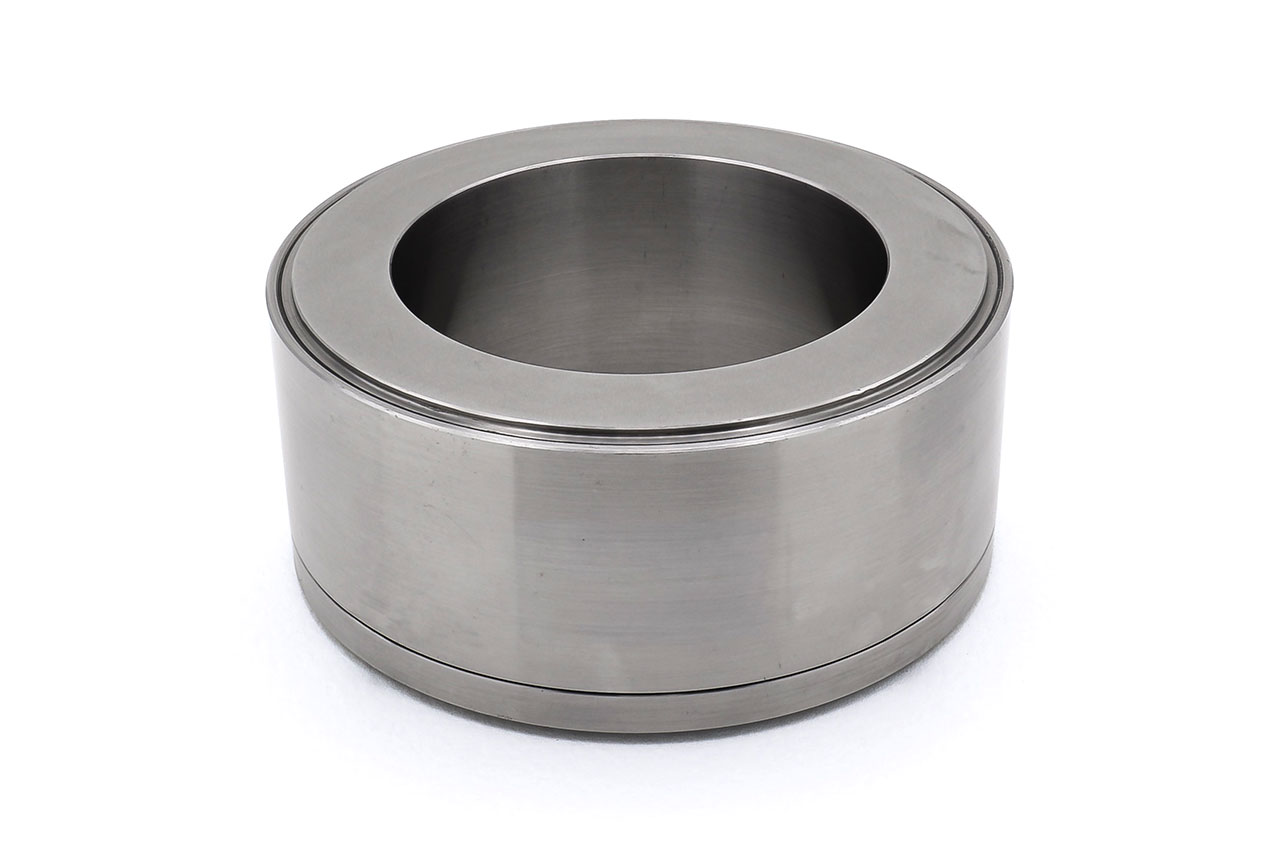

The F209 is ideally suited to engineering force measurements including through centre safety testing of cables, rods and bolts.
It is designed for easy installation, usually between two flat faces bearing on its loading rings, either unattached or with retaining spigots positioned in the centre hole. Alternatively tensile load transfer can be achieved via a tie rod assembly through the centre hole. In this way the loadcell can indirectly measure tensile loads in a “fail-safe” mode.
We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.
The F209 is ideally suited to engineering force measurements including through centre safety testing of cables, rods and bolts.
It is designed for easy installation, usually between two flat faces bearing on its loading rings, either unattached or with retaining spigots positioned in the centre hole. Alternatively tensile load transfer can be achieved via a tie rod assembly through the centre hole. In this way the loadcell can indirectly measure tensile loads in a “fail-safe” mode.
We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.
Parameter | Value | Unit |
---|---|---|
Non-linearity - Terminal | ±1.0 | % RL |
Hysteresis | ±1.0 | % RL |
Creep - 20 minutes | ±0.1 | % AL |
Repeatability | ±0.02 | % RL |
Rated output - Nominal | 1.2 | mV/V |
Rated output - Rationalised (1000 and 2000kN) | 1.0 | mV/V |
Rationalisation tolerance | ±0.5 | % RL |
Zero load output | ±4 | % RL |
Temperature effect on rated output per °C | ±0.005 | % AL |
Temperature effect on zero load output per °C | ±0.03 | % RL |
Temperature range - Compensated | -10 to +50 | °C |
Temperature range - Safe | -10 to +80 | °C |
Excitation voltage - Recommended | 10 | V |
Excitation voltage - Maximum | 10 | V |
Bridge resistance | 350 | Ω |
Insulation resistance - Minimum at 50Vdc | 500 | MΩ |
Overload - Safe | 50 | % RL |
Overload - Ultimate | 400 | % RL |
Sealing | IP65 | |
Weight - Nominal (excluding cable) | 7 to 9 | kg |
Code | Description |
---|---|
F209CFR0H0 | Compression, IP65, unrationalised |
F209CFR0HN | Compression, IP65, rationalised |
Change the F to a P for the connector version. |
Range (kN) | Stiffness (N/m) |
---|---|
1000 | 4.0 x 1010 |
2000 | 8.0 x 1010 |
4000 | 1.6 x 1011 |
Title | Type | File |
---|---|---|

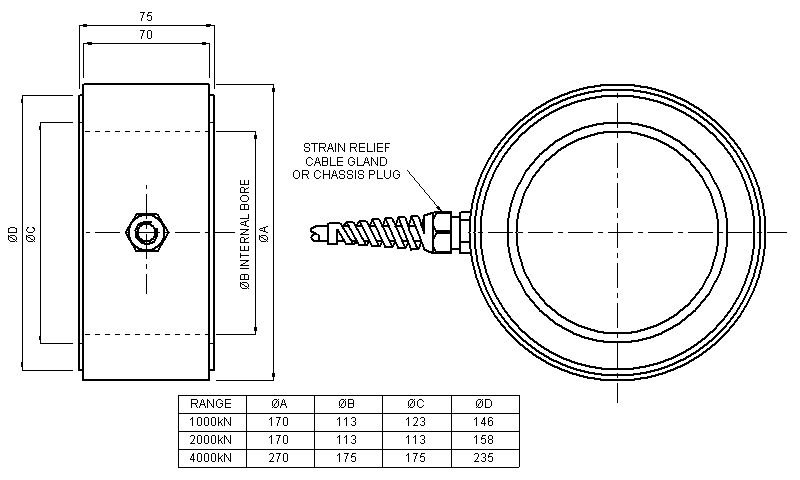

Outline drawing of the product. | Outline | Download |
F209CFR0H0 1000kN (100tonnef) | STEP File | Download |
F209CFR0H0 2000kN (200tonnef) | STEP File | Download |
F209CFR0H0 4000kN (400tonnef) | STEP File | Download |
F209CPR0H0 1000kN (100tonnef) | STEP File | Download |
F209CPR0H0 2000kN (200tonnef) | STEP File | Download |
F209CPR0H0 4000kN (400tonnef) | STEP File | Download |
