F326 Flange Mounted Motor Torque Transducer

Standard Range 20Nm

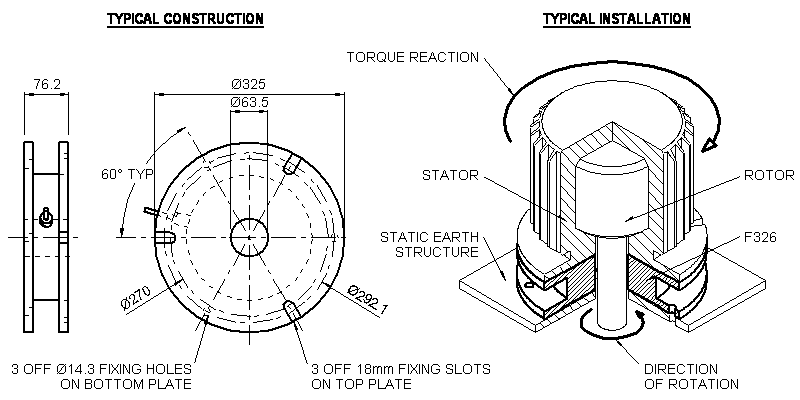

The F326 fits between a motor and its mounting structure acting as a low profile coupling or adaptor plate.

The motor shaft passes through the centre of the F326, the resultant torque reaction on the motor stator is equal and opposite to the shaft torque. Torque is transmitted from the motor stator through the F326 transducer to the earth structure or chassis.

This makes the F326 suitable for many process applications, examples are;

  • Bulk powder handling – mass flow measurement
  • Rheology – liquid viscosity measurement
  • Mechanical handling – conveyor belt drive torque

F326 transducers can be designed for most motor drive applications where the motor is itself static. We are happy to design variants of this transducer to meet your specific requirements. Please consult our engineering department.

The motor shaft passes through the centre of the F326, the resultant torque reaction on the motor stator is equal and opposite to the shaft torque. Torque is transmitted from the motor stator through the F326 transducer to the earth structure or chassis.

This makes the F326 suitable for many process applications, examples are;

  • Bulk powder handling – mass flow measurement
  • Rheology – liquid viscosity measurement
  • Mechanical handling – conveyor belt drive torque

F326 transducers can be designed for most motor drive applications where the motor is itself static. We are happy to design variants of this transducer to meet your specific requirements. Please consult our engineering department.

Specification

ParameterValueUnit
Non-linearity - Terminal±0.1% RT
Hysteresis±0.4% RT
Creep - 20 minutes±0.1% AT
Repeatability±0.05% RT
Rated output - Nominal2.1mV/V
Rated output - Rationalised2.0mV/V
Rationalisation tolerance±0.5% RT
Zero load output±4% RT
Temperature effect on rated output per °C±0.005% AT
Temperature effect on zero load output per °C±0.005% RT
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum20V
Bridge resistance700
Insulation resistance - Minimum at 50Vdc500MΩ
Structural stiffnessRange dependantN/m
SealingDust proof
Weight - Nominal (excluding cable)8.5kg

Order Codes

CodeDescription
See the loadcell ordering code sheet for more details. Add range in the required force units. Most F326 loadcells are manufactured to special requirements and are given an F326-Zxxxx number.

Notes

  • AT = Applied torque.
  • RT = Rated torque.
  • Temperature coefficients apply over the compensated range.
  • The motor mass can create an initial zero change and is replicated during our calibration.

Connections

The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 16-2-4C.

Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.

The screen is not connected to the loadcell body.

Files

TitleTypeFile
Outline drawing of the product.Outline Download
