F322 Accelerator Pedal Force Loadcell

Standard Range 250N (25kgf)
The F322 is a compact, low profile loadcell for measuring accelerator pedal application forces.

The loadcell is robust in construction with a maximum force range of 250N (25kgf). Its multi-hole fixing allows simple attachment to any shape pedal using screws or cable ties. The low profile design maintains the accelerator pedals ergonomic geometry. Low mass aluminium alloy construction reduces the mass influence upon the accelerator pedal in dynamic testing.

If you require other force ranges the F304 or F323 may be suitable.

We are happy to design variants of this loadcell to meet your specific requirements.

The loadcell is robust in construction with a maximum force range of 250N (25kgf). Its multi-hole fixing allows simple attachment to any shape pedal using screws or cable ties. The low profile design maintains the accelerator pedals ergonomic geometry. Low mass aluminium alloy construction reduces the mass influence upon the accelerator pedal in dynamic testing.

If you require other force ranges the F304 or F323 may be suitable.

We are happy to design variants of this loadcell to meet your specific requirements.

Specification

ParameterValueUnit
Non-linearity - Terminal±0.05% RL
Hysteresis±0.05% RL
Creep - 20 minutes±0.05% AL
Repeatability±0.02% RL
Rated output - Rationalised1.0mV/V
Rationalisation tolerance±0.1% RL
Zero load output±10% RL
Temperature effect on rated output per °C±0.005% AL
Temperature effect on zero load output per °C±0.01% RL
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum20V
Bridge resistance700
Insulation resistance - Minimum at 50Vdc500MΩ
Inclined load error - concentric at 3塱0.25% RL
Structural stiffness8 x 106N/m
Overload - Safe50% RL
Overload - Ultimate200% RL
Sideload - Safe100% RL
SealingIP65
Weight - Nominal (excluding cable)80g

Order Codes

CodeDescription
F322CFR0KNCompression, IP65, rationalised

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.

Connections

The loadcell is fitted with 2 metres of flexible polyurethane jacketed 4 core screened cable.

Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.

The screen is not connected to the loadcell body.

When this loadcell is rationalised the resistors are housed in a capsule located in the loadcell cable 100mm from the free end. Capsule dimensions are Ø10mm by 57mm.

Files

TitleTypeFile

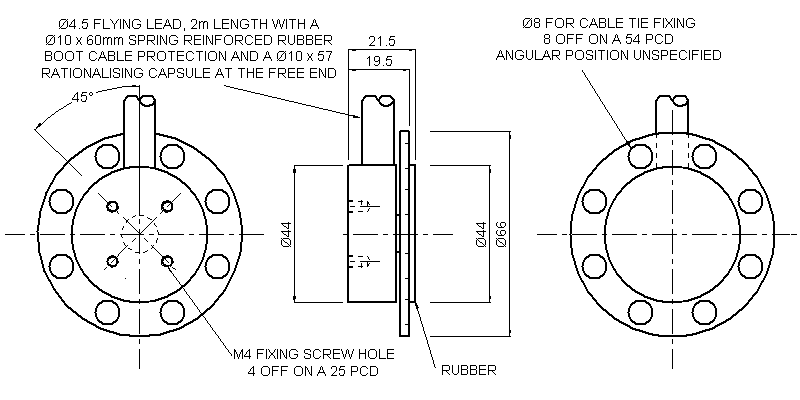

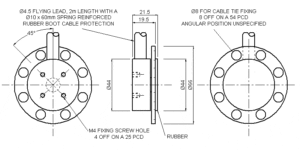

Outline drawing of the product.Outline Download
F322UFR0K0 250N (25kgf)STEP File Download

Enquire about F322 Accelerator Pedal Force Loadcell

Related Products

Bending Beam Load Cell for Set-up Wheel Assembly
  • Capacity / Rated Load: 1.25 – 5kN
  • Non – Linearity: 0.05%RL
  • Special Features: High Level of Compensation for Off-Axis Forces. Ideal for Variable Camber Angles

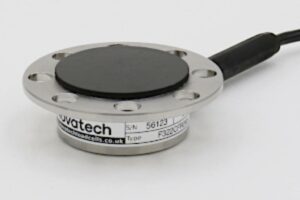

Low Range Pedal Force Load Cell
  • Capacity / Rated Load: 250N
  • Non – Linearity: 0.05%RL
  • Special Features: Dual Fixing Options for Increased Versatility. Can Withstand Off-Centre Load
Medium Range Pedal Force Load Cell
  • Capacity / Rated Load: 1kN
  • Non – Linearity: 0.05%RL
  • Special Features: Dual Fixing Options for Increased Versatility. Can Withstand Off-Centre Load
High Range Pedal Force Load Cell
  • Capacity / Rated Load: 2.5kN
  • Non – Linearity: 0.05%RL
  • Special Features: Dual Fixing Options for Increased Versatility. Can Withstand Off-Centre Load
Belt Tension Load Cell
  • Capacity / Rated Load: 16kN
  • Non – Linearity: 3.0%RL
  • Special Features: Lightweight Construction to Avoid Influence During Crash Testing
  • Custom Options: Custom Force Ranges and Designs to Suit Specific Belt Width and Thicknesses

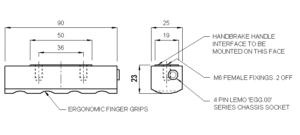

Handbrake Load Cell
