F305 Seat Belt Tension Loadcell

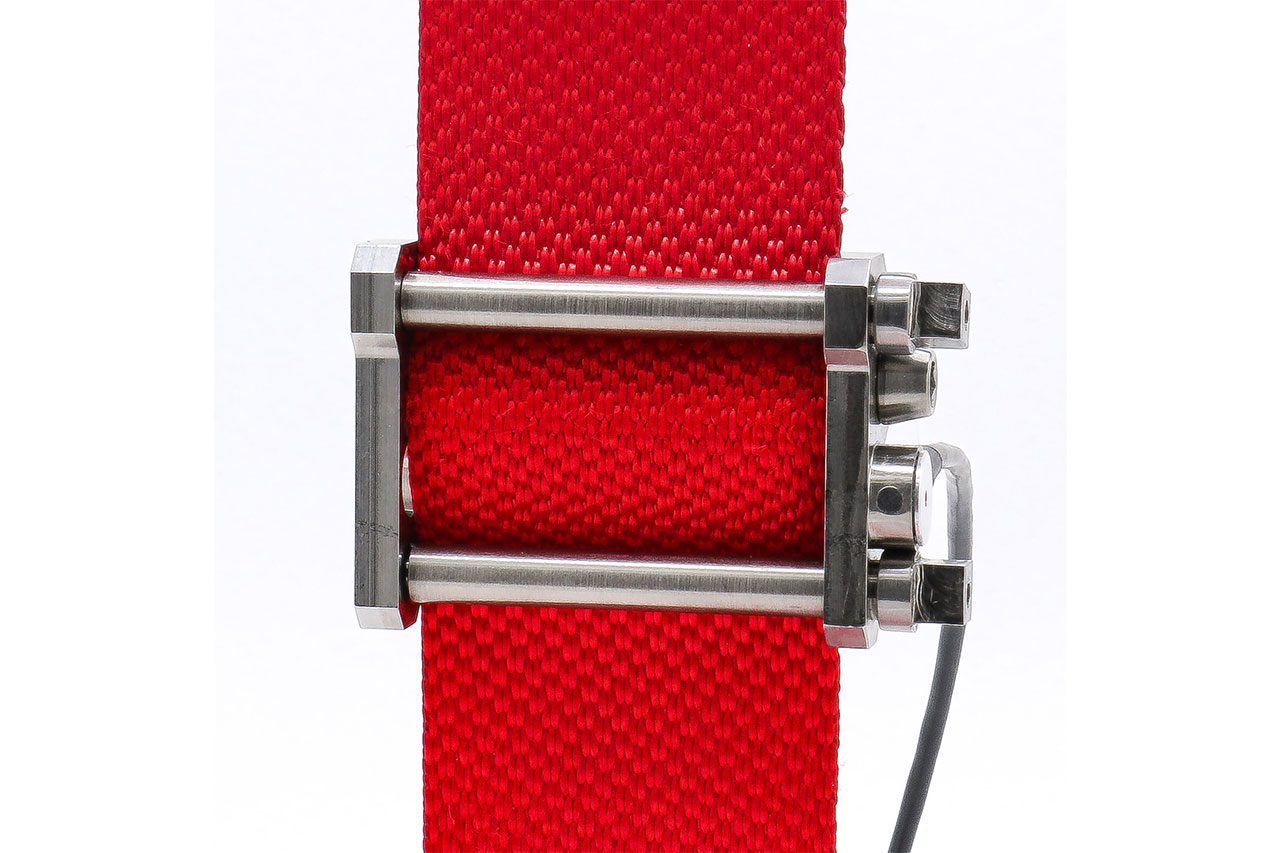

The F305 is a high performance loadcell for measuring seat belt tension forces.

Its geometry was created by computer program to generate an optimal design with minimal mass, material usage, stress and deflection. The outer bars can easily be removed allowing fitting to a seat belt while it is anchored at both ends.

The performance figures are typical values and are dependant on belt type. We can carry out a 5 point calibration using a 2 metre sample of customer supplied belt to reduce application errors. The calibration data can be used to reduce non-linearity errors in test results.
We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.

Its geometry was created by computer program to generate an optimal design with minimal mass, material usage, stress and deflection. The outer bars can easily be removed allowing fitting to a seat belt while it is anchored at both ends.

The performance figures are typical values and are dependant on belt type. We can carry out a 5 point calibration using a 2 metre sample of customer supplied belt to reduce application errors. The calibration data can be used to reduce non-linearity errors in test results.
We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.

Specification

ParameterValueUnit
Non-linearity - Terminal±3% RL
Hysteresis±1% RL
Creep - 20 minutes±0.05% AL
Repeatability±0.2% RL
Rated output - Nominal1.5mV/V
Zero load output±4% RL
Temperature effect on rated output per °C±0.005% AL
Temperature effect on zero load output per °C±0.007% RL
Temperature range - Compensated-10 to +50°C
Temperature range - Safe-10 to +80°C
Excitation voltage - Recommended10V
Excitation voltage - Maximum10V
Bridge resistance350
Insulation resistance - Minimum at 50Vdc500MΩ
Structural stiffness (normal to belt axis)1.9 x 107N/m
Overload - Safe30% RL
Overload - Ultimate100% RL
Weight - Nominal (excluding cable)50g

Order Codes

CodeDescription
F305TF00H0Tension, unrationalised

Notes

  • AL = Applied load.
  • RL = Rated load.
  • Temperature coefficients apply over the compensated range.

Connections

The loadcell is fitted with 2 metres of miniature PVC insulated 4 core screened cable.

Excitation + = Red, Excitation – = Black, Signal + = White, Signal – = Green, Screen = Orange.

The screen is not connected to the loadcell body.

Files

TitleTypeFile

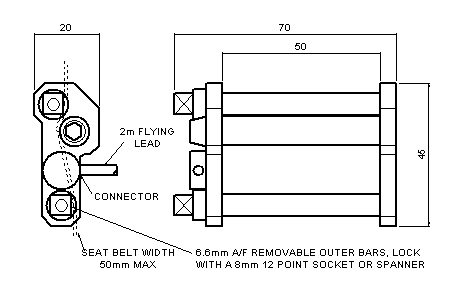

Outline drawing of the product.Outline Download
F305TF00H0 16kN (1.6tonnef)STEP File Download

Enquire about F305 Seat Belt Tension Loadcell
